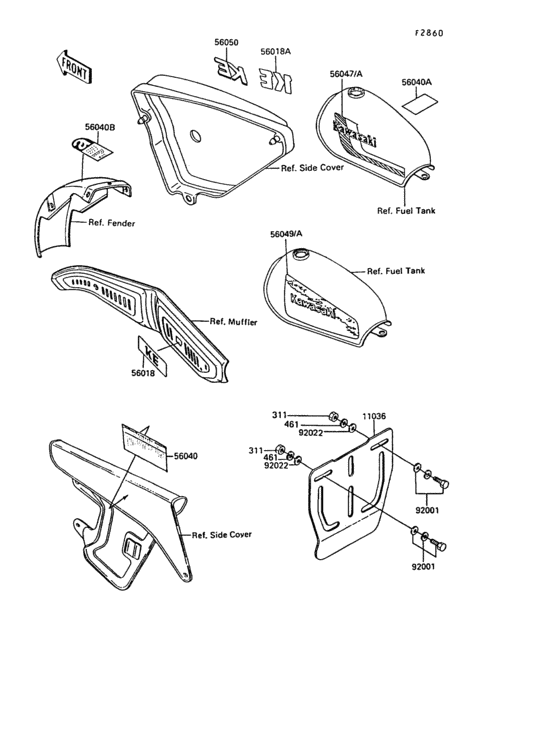

Label Diagram Kawasaki KE100
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KE100-B10
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
|
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
11036
|
11036
11036-1204
Bracket-a
|
11036-1204 |
— | ||
|
56018
|
56018
56018-1322 MARK,MUFFLER COVER |
56018-1322 |
US $15.80 |
||
|
56018A
|
56018A
56018-1943
Mark,side cover,ke,for green
|
56018-1943 |
— | ||
|
56040
|
56040
56040-1012
LABEL-WARNING,SIDE ST
|
56040-1012 |
— | ||
|
56040A
|
56040A
56040-1157 LABEL-WARNING,GASOLIN |
56040-1157 |
US $4.44 |
||
|
56040B
|
56040B
56040-1206
LABEL-WARNING,ASBESTO
|
56040-1206 |
— | ||
|
56047
|
56047
56047-1753
Pattern,fuel tank,lh
|
56047-1753 |
— | ||
|
56047A
|
56047A
56047-1754
Pattern,fuel tank,rh
|
56047-1754 |
— | ||
|
56049
|
56049
56049-1788 Pattern,fuel tank,lh |
56049-1788 |
US $33.71 |
||
|
56049A
|
56049A
56049-1789 Pattern,fuel tank,rh |
56049-1789 |
US $32.11 |
||
|
56050
|
56050
56050-1584 MARK,SIDE COVER,KE |
56050-1584 |
US $16.61 |
||
|
92001
|
92001
92001-1773 BOLT,6X20 |
92001-1773 |
from US $2.53 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
