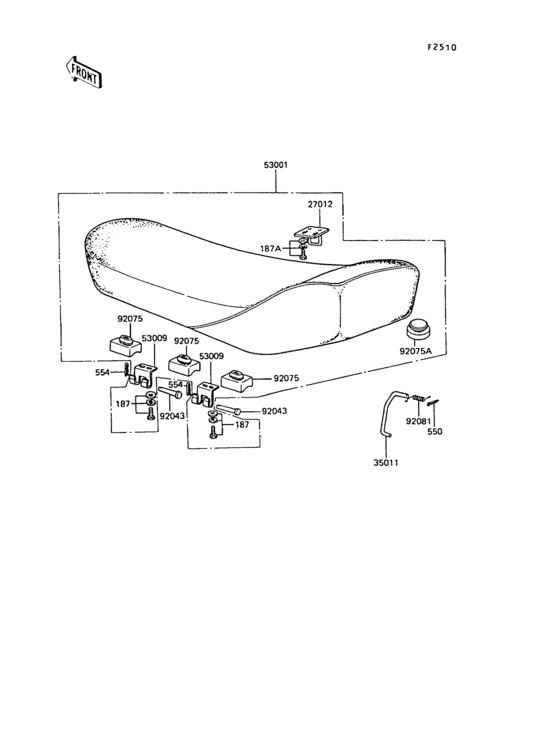

Seat Diagram Kawasaki KE100
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KE100-B10
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0612
BOLT-UPSET-WSP
|
187B0612 |
— | ||
| replacement | |||||
|
187
|
187
187AA0612 BOLT-UPSET-WSP |
187AA0612 |
from US $1.11 |
||
|
187A
|
187A
187B0614 BOLT-UPSET-WSP |
187B0614 |
US $1.11 |
||
| replacement | |||||
|
187A
|
187A
187AA0614 BOLT-UPSET-WSP |
187AA0614 |
from US $1.01 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
|
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
27012
|
27012
53008021 HOOK, SEAT |
53008021 |
from US $8.08 |
||
|
35011
|
35011
53054003 STAND,SEAT |
53054003 |
from US $7.16 |
||
|
53001
|
53001
53001-1452-MA SEAT-ASSY,DUAL,BLACK |
53001-1452-MA |
US $369.18 |
||
|
53009
|
53009
53009017 HINGE A |
53009017 |
from US $8.58 |
||
| replacement | |||||
|
53009
|
53009
53009-017-10 HINGE,BLACK |
53009-017-10 |
US $71.98 |
||
|
92043
|
92043
53011002 PIN |
53011002 |
US $7.57 |
||
|
92075
|
92075
92075-023 DAMPER RUBB DUAL SEAT |
92075-023 |
from US $3.81 |
||
|
92075A
|
92075A
92075-216
DAMPER RUBBER,SEAT
|
92075-216 |
— | ||
|
92081
|
92081
53055001 SPRING,SEAT HOOK |
53055001 |
from US $7.78 |
||
| replacement | |||||
|
92081
|
92081
92081-1053
SPRING,SEAT HOOK
|
92081-1053 |
— | ||
