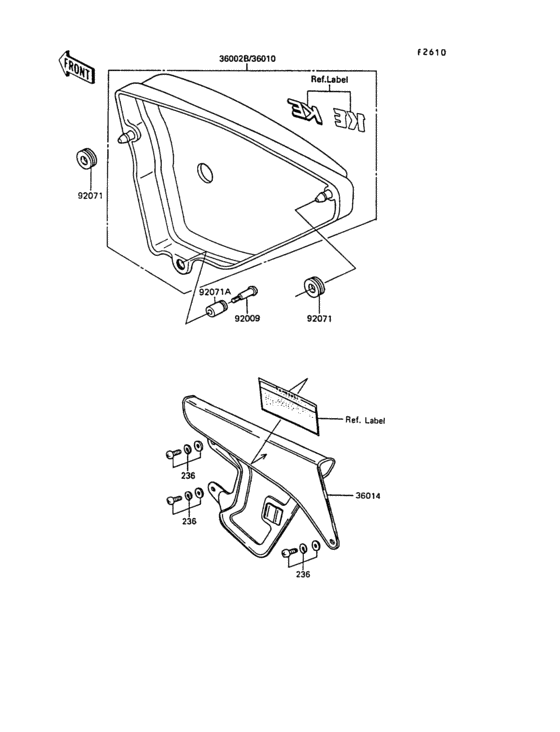

Side cover/chain case Diagram Kawasaki KE100
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KE100-B10
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
236
|
236
236C0612 SCREW-PAN-WSP-CROS |
236C0612 |
US $3.13 |
||
| replacement | |||||
|
236
|
236
236AB0612 SCREW-PAN-WSP-CROS |
236AB0612 |
from US $1.09 |
||
|
36002B
|
36002B
36002-5340-6W
Cover-side,rh,l.green
|
36002-5340-6W |
— | ||
|
36014
|
36014
36014-1047 CASE-CHAIN,BLACK |
36014-1047 |
US $41.72 |
||
|
92009
|
92009
92009-1001
SCREW,SIDE COVER
|
92009-1001 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1091 SCREW,SIDE COVER |
92009-1091 |
US $3.64 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92071A
|
92071A
92071-1001 GROMMET,SIDE COVER |
92071-1001 |
from US $3.60 |
||
