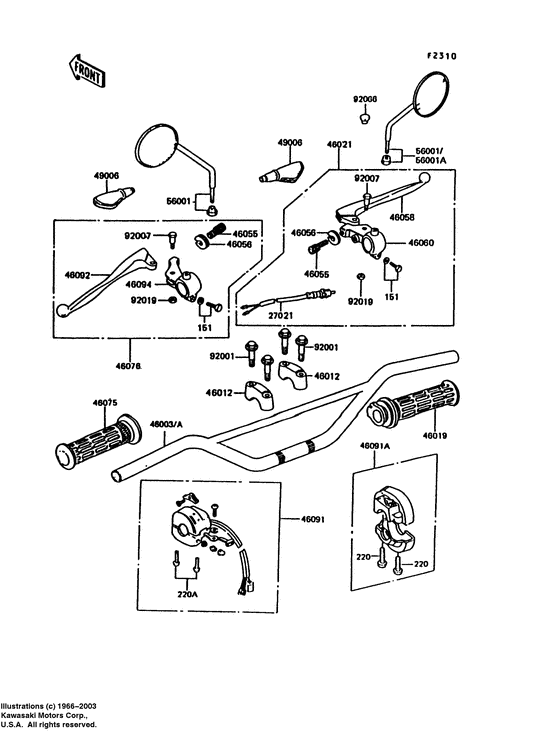

Handlebar Diagram Kawasaki KE100
- Year
- 1994
- Model code
- KE100-B13
- Sales region
- USA
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
151
|
151
151N0625 BOLT-WP |
151N0625 |
US $3.71 |
||
|
220
|
220
220B0518 SCREW-PAN-CROS |
220B0518 |
from US $0.79 |
||
| replacement | |||||
|
220
|
220
220AA0518 SCREW-PAN-CROS |
220AA0518 |
from US $0.94 |
||
|
220A
|
220A
220B0525
SCREW-PAN-CROS,5X25
Screw-pan-cros,5x25; |
220B0525 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0525 SCREW-PAN-CROS,5X25Screw-pan-cros,5x25; |
220AA0525 |
from US $1.25 |
||
|
27021
|
27021
27021004 SWITCH-FR. BRAKE LAMPSwitch,fr brake lamp; |
27021004 |
from US $20.06 |
||
|
46003A
|
46003A
46003-1432
HANDLE
|
46003-1432 |
— | ||
| replacement | |||||
|
46003A
|
46003A
46003-1540 HANDLE |
46003-1540 |
US $35.75 |
||
|
46012
|
46012
46012008 HOLDER-HANDLEBARHolder-handle,upp; |
46012008 |
from US $24.53 |
||
|
46019
|
46019
46019-1005 GRIP ASSY,THROTTLEGrip-assy,throttle; |
46019-1005 |
from US $33.42 |
||
|
46021
|
46021
46021031 LEVER ASSY,FRNT BRAKELever-assy-grip,brake; |
46021031 |
US $42.48 |
||
|
46055
|
46055
46055003 SCREW CABLE ADJUSTScrew,cable adjust,8mm; |
46055003 |
from US $11.09 |
||
|
46056
|
46056
46056005 NUT-LOCKNut,cable adjust lock; |
46056005 |
from US $6.02 |
||
|
46058
|
46058
46058-004 LEVER, FRONT BRAKELever-grip,front brake; |
46058-004 |
from US $24.91 |
||
|
46060
|
46060
4606000921 HOLDER-FR BRK LEV,BLKHolder,brake lever,fr,f.black; |
4606000921 |
from US $24.11 |
||
|
46075
|
46075
46075-1004 GRIP,L.H.Grip,lh; |
46075-1004 |
from US $13.28 |
||
|
46076
|
46076
46076-044 Lever assy,clutchLever-assy-grip,clutch; |
46076-044 |
from US $45.72 |
||
|
46091
|
46091
46091-040
CASE ASSY,L.H
Housing-assy-control,lh; |
46091-040 |
— | ||
|
46091A
|
46091A
46091-1041 HOUSING ASSY,CONT,R.HHousing-assy-control,rh; |
46091-1041 |
US $56.16 |
||
|
46092
|
46092
46092015 LEVER-CLUTCHLever-grip,clutch; |
46092015 |
from US $20.45 |
||
|
46094
|
46094
4609401121 HOLDER,F.BLACKHolder,f.black; |
4609401121 |
from US $23.64 |
||
|
49006
|
49006
49006-1017 BOOTS,LEVER HOLDERBoot,lever holder; |
49006-1017 |
from US $16.47 |
||
|
56001
|
56001
56001-1381 MIRROR-ASSY |
56001-1381 |
US $34.47 |
||
|
56001A
|
56001A
56001-1381 MIRROR-ASSY(option) |
56001-1381 |
US $34.47 |
||
|
92001
|
92001
92001-1910 BOLT,FLANGED,8X35Bolt,flanged,8x35; |
92001-1910 |
from US $3.80 |
||
| replacement | |||||
|
92001
|
92001
92154-2923 BOLT,FLANGED,8X35Bolt,flanged,8x35; |
92154-2923 |
from US $4.61 |
||
|
92007
|
92007
92007-046 BOLT,HEX HEAD,5X22Bolt,5x22; |
92007-046 |
from US $4.59 |
||
|
92019
|
92019
92019-014 NUT-LOCK,5MMNut,lock,5mm; |
92019-014 |
from US $3.01 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8Plug,9.5x8,polyethylene; |
92066-1077 |
from US $3.01 |
||
