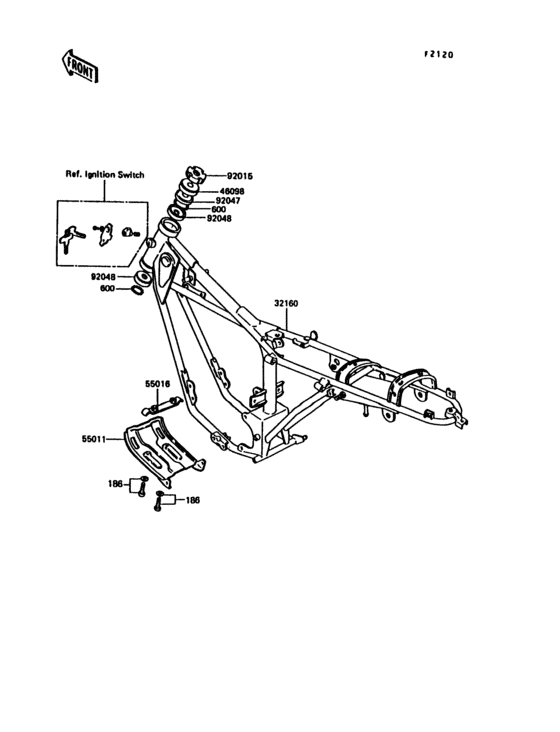

Frame Diagram Kawasaki KE100
- Year
- 1994
- Colour
- Lime Green (7F)
- Model code
- KE100-B13
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
186
|
186
186B0614 BOLT-UPSET-WP |
186B0614 |
from US $0.63 |
||
| replacement | |||||
|
186
|
186
186AA0614 BOLT-UPSET-WP |
186AA0614 |
from US $1.09 |
||
|
600
|
600
600A0600 BALL STEEL 3/16' |
600A0600 |
from US $0.79 |
||
|
32160
|
32160
32160-1229
Frame-comp
|
32160-1229 |
— | ||
|
46098
|
46098
46098004 CAP STEERING STEM |
46098004 |
from US $4.59 |
||
|
55011
|
55011
55011018 GUARD,ENGINE |
55011018 |
from US $24.11 |
||
|
55016
|
55016
55016007 BRACKET,ENGINE GUARD |
55016007 |
US $12.46 |
||
|
92015
|
92015
92015-1382 NUT,STEERING STEM LOC |
92015-1382 |
from US $9.82 |
||
|
92047
|
92047
92047-005 CONE UPPER BEARING |
92047-005 |
from US $8.09 |
||
|
92048
|
92048
92048-004
RACE BEARING
|
92048-004 |
— | ||
