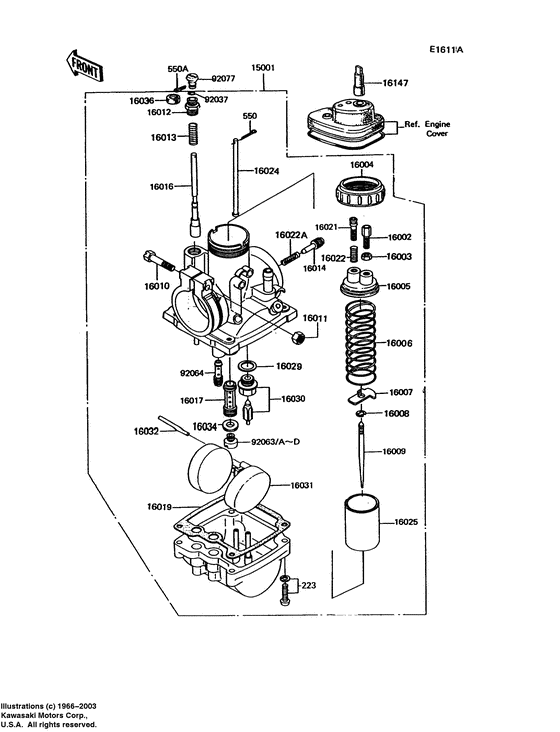

Carburetor Diagram Kawasaki KE100
- Year
- 1996
- Model code
- KE100-B15
- Sales region
- USA
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15001
|
15001
15001-1191
CARBURETOR-ASSY
|
15001-1191 |
— | ||
|
16002
|
16002
16002-017 ADJUSTER,CABLE |
16002-017 |
from US $9.50 |
||
|
16003
|
16003
16003-004 NUT CABLE ADJUST LOCKNut,cable adjust lock; |
16003-004 |
from US $4.59 |
||
|
16004
|
16004
16004-010 CAP MIXING CHAMBERCap-chamber,mixing; |
16004-010 |
from US $12.60 |
||
|
16005
|
16005
16005-005 TOP MIXING CHAMBERTop-chamber,mixing; |
16005-005 |
from US $12.60 |
||
|
16006
|
16006
16006-013 SPRING THROTTLE VALVESpring,throttle valve; |
16006-013 |
from US $9.33 |
||
|
16007
|
16007
16007-020 SPRING SEAT,THRTL TLSeat-spring,throttle valve; |
16007-020 |
from US $7 |
||
|
16008
|
16008
16008-010 CIRCLIPClamp,e-type; |
16008-010 |
from US $6.65 |
||
|
16009
|
16009
16009-059
JET NEEDLE 4EJ7
Needle-jet,4ej7; |
16009-059 |
— | ||
|
16010
|
16010
16010-004 SCREW CLAMPScrew,clamp; |
16010-004 |
from US $3.27 |
||
|
16011
|
16011
16011-002 NUT-HEX,6MMNut,6mm; |
16011-002 |
US $0.61 |
||
| replacement | |||||
|
16011
|
16011
311AA0600 NUT-HEX,6MMNut,6mm; |
311AA0600 |
from US $0.63 |
||
|
16012
|
16012
16012-021
CAP,STARTER PLUNGER
|
16012-021 |
— | ||
|
16013
|
16013
16013-010
SPRING,STARTER PLUNGR
Spring,starter plunger; |
16013-010 |
— | ||
|
16014
|
16014
16014-002 SCREW PILOT AIR ADJST |
16014-002 |
from US $11.35 |
||
|
16016
|
16016
16016-012 PLUNGER,STARTERPlunger,starter; |
16016-012 |
from US $28.61 |
||
|
16017
|
16017
16017-081 NEEDLE JET O-4Jet-needle,o-4; |
16017-081 |
US $32.31 |
||
|
16019
|
16019
16019-021 GASKET,FLOAT CHAMBERGasket,float chamber; |
16019-021 |
from US $12.82 |
||
|
16021
|
16021
16021-002 SCREW,THROTTLE STOP |
16021-002 |
from US $11.52 |
||
|
16022
|
16022
16022-005 SPRING THR STOP SCREWSpring,throttle stop screw; |
16022-005 |
from US $6.81 |
||
|
16022A
|
16022A
16022-007 SPRING,PILOT AIR SCRESpring,pilot air screw; |
16022-007 |
from US $5.44 |
||
|
16024
|
16024
16024-006 ROD,THROTTLE VLV STPRod,throttle valve stop; |
16024-006 |
US $6.88 |
||
| replacement | |||||
|
16024
|
16024
16024-012 ROD,THROTTLE VLV STPRod,throttle valve stop; |
16024-012 |
US $6.88 |
||
|
16025
|
16025
16025-057 VALVE,THROTTLE CA2.0Valve-throttle,ca2.0; |
16025-057 |
from US $74.81 |
||
|
223
|
223
223B0418 SCREW-PAN-WS-CROS |
223B0418 |
US $2.56 |
||
| replacement | |||||
|
223
|
223
223AA0418 SCREW-PAN-WS-CROS |
223AA0418 |
from US $1.09 |
||
|
550
|
550
550D1210
PIN COTTER 1.2X10
Pin-cotter,1.2x10; |
550D1210 |
— | ||
| replacement | |||||
|
550
|
550
550AA1210 PIN-COTTER,1.2X10Pin-cotter,1.2x10; |
550AA1210 |
from US $1.12 |
||
|
550A
|
550A
550D1615
PIN COTTER 1.6X15
Pin-cotter,1.6x15; |
550D1615 |
— | ||
| replacement | |||||
|
550A
|
550A
550AA1615 PIN-COTTER,1.6X15Pin-cotter,1.6x15; |
550AA1615 |
from US $0.72 |
||
|
16029
|
16029
16029-002 WASHER VALVE SEATGasket,float valve seat; |
16029-002 |
from US $3.17 |
||
|
16030
|
16030
16030-001 FLOAT VALVE ASSYValve-float,#2.0; |
16030-001 |
from US $34.83 |
||
|
16031
|
16031
16031-015 FLOAT |
16031-015 |
from US $34.83 |
||
|
16032
|
16032
16032-003
PIN,FLOAT
Pin,float; |
16032-003 |
— | ||
| replacement | |||||
|
16032
|
16032
16032-008 PIN,FLOATPin,float; |
16032-008 |
from US $4.20 |
||
|
16034
|
16034
16034-001 WASHER MAIN JETWasher,main jet; |
16034-001 |
from US $3.01 |
||
|
16036
|
16036
16036-012 CAP,STARTER PLUNGERBoot,starter plunger; |
16036-012 |
from US $7.78 |
||
| replacement | |||||
|
16036
|
16036
16039-015 CAP,RUBBER,STARTER PLBoot,starter plunger; |
16039-015 |
from US $4.75 |
||
|
16147
|
16147
16147001 PLUG,CARBURETOR CAPPlug,12x40; |
16147001 |
from US $3.31 |
||
|
92037
|
92037
92037-1077
CIRCLIP
|
92037-1077 |
— | ||
|
92063
|
92063
92063-093 JET-MAIN,#A85RJet-main,#85r; (off road use only) |
92063-093 |
US $12.74 |
||
| replacement | |||||
|
92063
|
92063
92063-1323 JET-MAIN,#A85RJet-main,#85r; (off road use only) |
92063-1323 |
from US $8.71 |
||
|
92063A
|
92063A
92063-1030 MAIN JET, #A80Jet-main,#a80r; |
92063-1030 |
from US $8.71 |
||
|
92063B
|
92063B
92063-1032 MAIN JET,#77.5RJet-main,#a77.5r; (off road use only) |
92063-1032 |
from US $8.71 |
||
|
92063C
|
92063C
92063-109 MAIN JET NO 75RJet-main,#75r; (off road use only) |
92063-109 |
from US $10.77 |
||
|
92063D
|
92063D
92063-124 JET-MAIN,#A82,5RJet-main,#82.5r; (off road use only) |
92063-124 |
US $12.74 |
||
| replacement | |||||
|
92063D
|
92063D
92063-1322 JET-MAIN,#A82,5RJet-main,#82.5r; (off road use only) |
92063-1322 |
from US $8.71 |
||
|
92064
|
92064
92064-020 PILOT JET #17.5 ISOJet-pilot,#17.5; |
92064-020 |
from US $13.15 |
||
|
92077
|
92077
92077-022 KNOB,CARBURETORKnob,carburetor; |
92077-022 |
US $6.38 |
||
