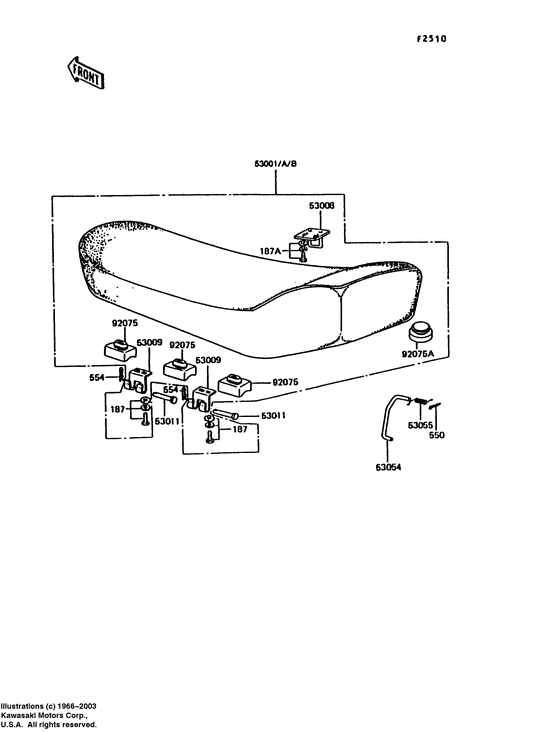

Seat Diagram Kawasaki KE100
- Year
- 1996
- Model code
- KE100-B15
- Sales region
- USA
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0612
BOLT-UPSET-WSP
|
187B0612 |
— | ||
| replacement | |||||
|
187
|
187
187AA0612 BOLT-UPSET-WSP |
187AA0612 |
from US $1.11 |
||
|
187A
|
187A
187B0614 BOLT-UPSET-WSP |
187B0614 |
US $1.11 |
||
| replacement | |||||
|
187A
|
187A
187AA0614 BOLT-UPSET-WSP |
187AA0614 |
from US $1.01 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin-cotter,2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin-cotter,2.0x15; |
550AA2015 |
from US $0.63 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
53001B
|
53001B
53001-1803-LW SEAT-ASSY,DUAL,G.VIOLSeat-assy,dual,g.violet; |
53001-1803-LW |
US $394.99 |
||
|
53008
|
53008
53008021 HOOK, SEATHook,seat; |
53008021 |
from US $8.08 |
||
|
53009
|
53009
53009017 HINGE AHinge,seat; |
53009017 |
from US $8.58 |
||
| replacement | |||||
|
53009
|
53009
53009-017-10 HINGE,BLACKHinge,seat; |
53009-017-10 |
US $71.98 |
||
|
53011
|
53011
53011002 PINPin,6x48; |
53011002 |
US $7.57 |
||
|
53054
|
53054
53054003 STAND,SEATStay,seat; |
53054003 |
from US $7.16 |
||
|
53055
|
53055
53055001 SPRING,SEAT HOOKSpring,seat hook; |
53055001 |
from US $7.78 |
||
| replacement | |||||
|
53055
|
53055
92081-1053
SPRING,SEAT HOOK
Spring,seat hook; |
92081-1053 |
— | ||
|
92075
|
92075
92075-023 DAMPER RUBB DUAL SEATDamper,dual seat; |
92075-023 |
from US $3.81 |
||
|
92075A
|
92075A
92075-216
DAMPER RUBBER,SEAT
Damper,seat; |
92075-216 |
— | ||
