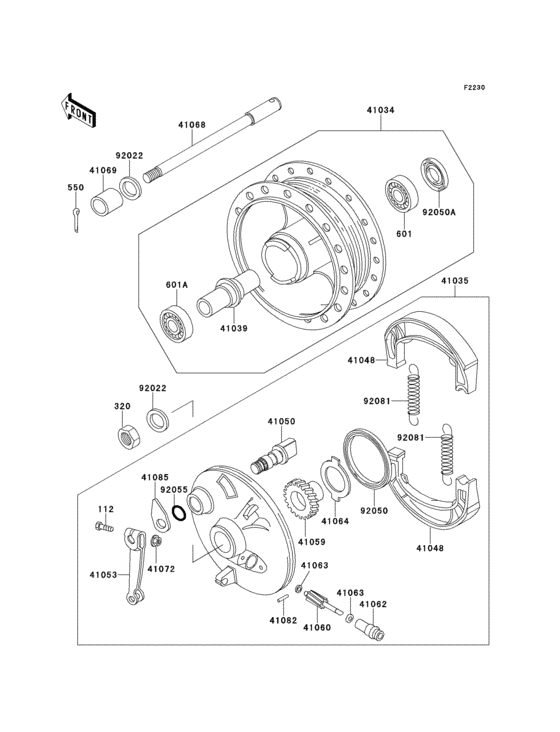

Front hub Diagram Kawasaki KE100
- Year
- 2001
- Colour
- Lime Green (7F)
- Model code
- KE100-B20
- Sales region
- Canada
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0630
BOLT-UPSET
|
112G0630 |
— | ||
| replacement | |||||
|
112
|
112
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
320
|
320
320B1000 Nut, castle, 10mm |
320B1000 |
US $3.76 |
||
| replacements | |||||
|
320
|
320
320BA1000 NUT-CASTLE |
320BA1000 |
from US $1.24 |
||
|
320
|
320
320AA1000 NUT-CASTLE |
320AA1000 |
US $6.80 |
||
|
550
|
550
550D2525 PIN-COTTER,2.5X25 |
550D2525 |
from US $1.27 |
||
| replacement | |||||
|
550
|
550
550AA2525 PIN-COTTER,2.5X25 |
550AA2525 |
from US $0.63 |
||
|
601
|
601
601B6200G BEARING BALL #6200 |
601B6200G |
US $10.89 |
||
| replacement | |||||
|
601
|
601
601B6200
BEARING BALL #6200
|
601B6200 |
— | ||
|
601A
|
601A
601B6300ZG BEARING BALL #6300Z |
601B6300ZG |
US $13.52 |
||
| replacement | |||||
|
601A
|
601A
601B6300Z BEARING BALL #6300Z |
601B6300Z |
from US $9.65 |
||
|
41034
|
41034
41034-1047 DRUM-ASSY,FR BRK |
41034-1047 |
US $199.62 |
||
|
41035
|
41035
41035-1291 PANEL-ASSY-BRAKE,FR |
41035-1291 |
US $299.21 |
||
|
41039
|
41039
41039002 SPACER FRONT HUB |
41039002 |
US $8.93 |
||
|
41048
|
41048
41048-1085 SHOE-BRAKE |
41048-1085 |
from US $35.72 |
||
|
41050
|
41050
41050018 CAM SHAFT-FRONT BRAKE |
41050018 |
from US $19.76 |
||
|
41053
|
41053
41053005 LEVER FRONT BRAKE CAM |
41053005 |
from US $10.27 |
||
|
41059
|
41059
41059022 GEAR,SPEEDOMETER |
41059022 |
US $30.92 |
||
|
41060
|
41060
41060004 PINION SPEEDOMETER |
41060004 |
from US $17.03 |
||
|
41062
|
41062
41062005 BUSH,SPEEDMETER CABLE |
41062005 |
from US $14.89 |
||
|
41063
|
41063
41063001 WASHER THRST SPD PINI |
41063001 |
from US $3.17 |
||
|
41064
|
41064
41064010 RECEIVER,SPEED GEAR |
41064010 |
from US $6.06 |
||
|
41068
|
41068
41068-1359 AXLE,FR |
41068-1359 |
US $23.71 |
||
|
41069
|
41069
41069026 COLLAR,FRONT AXLE |
41069026 |
from US $8.24 |
||
|
41072
|
41072
41072007 NUT,6MM |
41072007 |
from US $2.85 |
||
|
41082
|
41082
41082001 PIN,SPRING |
41082001 |
from US $3.01 |
||
|
41085
|
41085
41085008 INDICATOR,BK SHOE |
41085008 |
US $9.01 |
||
|
92022
|
92022
92022-1558 WASHER,10.5X22X1.6 |
92022-1558 |
from US $3.17 |
||
|
92050
|
92050
92050-002 OIL SEAL BRAKE PANEL |
92050-002 |
from US $7.93 |
||
|
92050A
|
92050A
92050-063 OIL SEAL,TC17317 |
92050-063 |
from US $7.93 |
||
|
92055
|
92055
92055-004 0 RING,11MM |
92055-004 |
from US $3.17 |
||
|
92081
|
92081
92081-1766 SPRING,BRAKE SHOE |
92081-1766 |
from US $5.39 |
||
