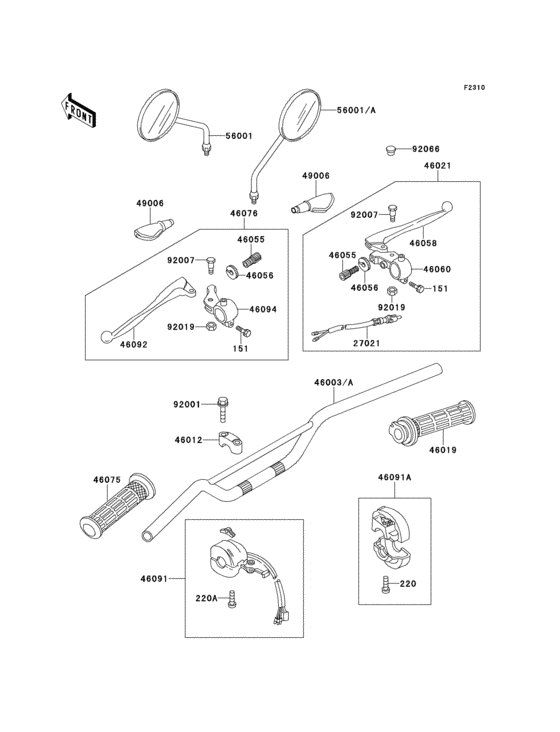

Handlebar Diagram Kawasaki KE100
- Year
- 2001
- Colour
- Lime Green (7F)
- Model code
- KE100-B20
- Sales region
- Canada
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
151
|
151
151N0625 BOLT-WP |
151N0625 |
US $3.71 |
||
|
220
|
220
220B0518 SCREW-PAN-CROS |
220B0518 |
from US $0.79 |
||
| replacement | |||||
|
220
|
220
220AA0518 SCREW-PAN-CROS |
220AA0518 |
from US $0.94 |
||
|
220A
|
220A
220B0525
SCREW-PAN-CROS,5X25
|
220B0525 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0525 SCREW-PAN-CROS,5X25 |
220AA0525 |
from US $1.25 |
||
|
27021
|
27021
27021004 SWITCH-FR. BRAKE LAMP |
27021004 |
from US $20.06 |
||
|
46003A
|
46003A
46003-1540 HANDLE |
46003-1540 |
US $35.75 |
||
|
46012
|
46012
46012008 HOLDER-HANDLEBAR |
46012008 |
from US $24.53 |
||
|
46019
|
46019
46019-1005 GRIP ASSY,THROTTLE |
46019-1005 |
from US $33.42 |
||
|
46021
|
46021
46021031 LEVER ASSY,FRNT BRAKE |
46021031 |
US $42.48 |
||
|
46055
|
46055
46055003 SCREW CABLE ADJUST |
46055003 |
from US $11.09 |
||
|
46056
|
46056
46056005 NUT-LOCK |
46056005 |
from US $6.02 |
||
|
46058
|
46058
46058-004 LEVER, FRONT BRAKE |
46058-004 |
from US $24.91 |
||
|
46060
|
46060
4606000921 HOLDER-FR BRK LEV,BLK |
4606000921 |
from US $24.11 |
||
|
46075
|
46075
46075-1004 GRIP,L.H. |
46075-1004 |
from US $13.28 |
||
|
46076
|
46076
46076-044 Lever assy,clutch |
46076-044 |
from US $45.72 |
||
|
46091
|
46091
46091-040
CASE ASSY,L.H
|
46091-040 |
— | ||
|
46091A
|
46091A
46091-1041 HOUSING ASSY,CONT,R.H |
46091-1041 |
US $56.16 |
||
|
46092
|
46092
46092015 LEVER-CLUTCH |
46092015 |
from US $20.45 |
||
|
46094
|
46094
4609401121 HOLDER,F.BLACK |
4609401121 |
from US $23.64 |
||
|
49006
|
49006
49006-1017 BOOTS,LEVER HOLDER |
49006-1017 |
from US $16.47 |
||
|
56001
|
56001
56001-1381 MIRROR-ASSY |
56001-1381 |
US $34.47 |
||
|
92001
|
92001
92001-1910 BOLT,FLANGED,8X35 |
92001-1910 |
from US $3.80 |
||
| replacement | |||||
|
92001
|
92001
92154-2923 BOLT,FLANGED,8X35 |
92154-2923 |
from US $4.61 |
||
|
92007
|
92007
92007-046 BOLT,HEX HEAD,5X22 |
92007-046 |
from US $4.59 |
||
|
92019
|
92019
92019-014 NUT-LOCK,5MM |
92019-014 |
from US $3.01 |
||
