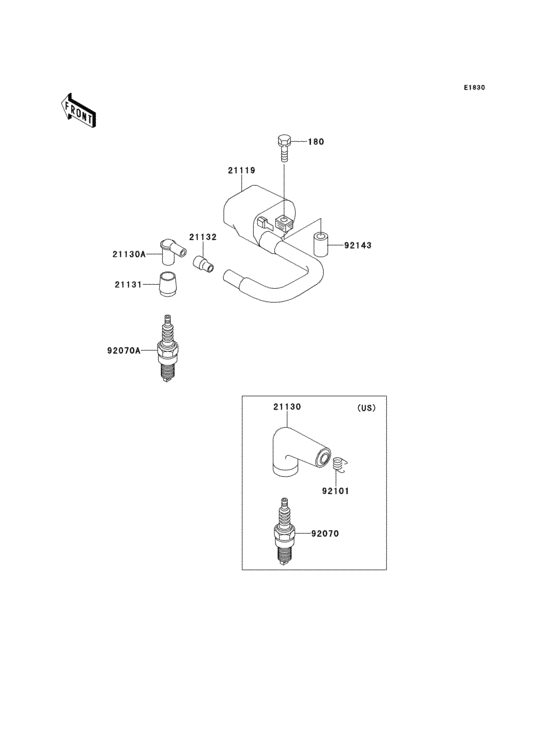

Ignition System Diagram Kawasaki KE100
- Year
- 2001
- Colour
- Lime Green (7F)
- Model code
- KE100-B20
- Sales region
- Canada
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180G0645 BOLT-UPSET-WS,6X45 |
180G0645 |
US $2.59 |
||
| replacement | |||||
|
180
|
180
180BA0645 BOLT-UPSET-WS,6X45 |
180BA0645 |
from US $1.40 |
||
|
21119
|
21119
21119-1468
IGNITER
|
21119-1468 |
— | ||
|
21130A
|
21130A
21130024
CAP-SPARK PLUG,RTFM20
|
21130024 |
— | ||
| replacement | |||||
|
21130A
|
21130A
21130-1007
CAP-SPARK PLUG,RTFM20
|
21130-1007 |
— | ||
|
21131
|
21131
21131-004 GROMMET-PLUG CAP,A |
21131-004 |
from US $8.71 |
||
|
21132
|
21132
21132005 GROMMET,SPARK PLG CAP |
21132005 |
from US $3.17 |
||
|
92070A
|
92070A
92070-1021 SPARK PLUG BR8ES |
92070-1021 |
US $31.10 |
||
| replacement | |||||
|
92070A
|
92070A
BR8ES SPARK PLUG BR8ES |
BR8ES |
US $25.92 |
||
|
92143
|
92143
92143-1046 COLLAR |
92143-1046 |
from US $3.48 |
||
