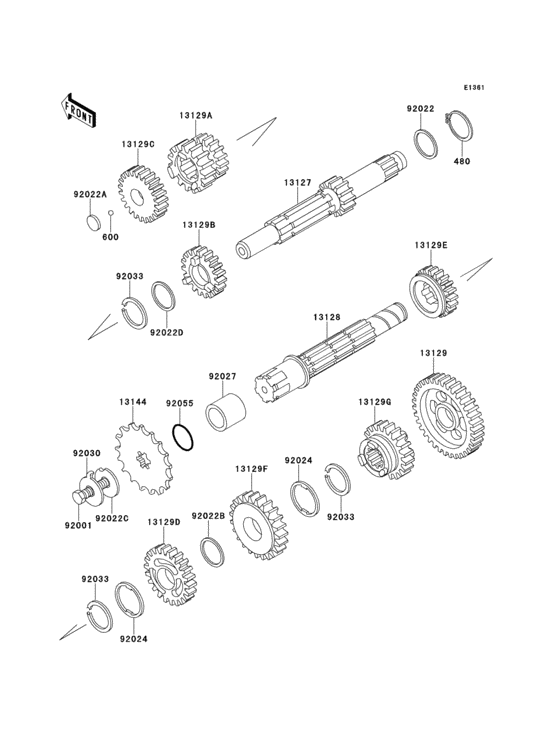

Transmission Diagram Kawasaki KE100
- Year
- 2001
- Colour
- Lime Green (7F)
- Model code
- KE100-B20
- Sales region
- Canada
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
480
|
480
480J1600 CIRCLIP 16MM |
480J1600 |
from US $1.43 |
||
|
600
|
600
600A0700 BALL STEEL 7/32' |
600A0700 |
from US $0.79 |
||
|
13127
|
13127
13127-1017 SHAFT-TRANSMISSION IN |
13127-1017 |
US $147.55 |
||
| replacement | |||||
|
13127
|
13127
13127-1031 SHAFT-TRANSMISSION IN |
13127-1031 |
US $147.55 |
||
|
13128
|
13128
13128021 SHAFT OUTPUT |
13128021 |
US $173.47 |
||
| replacement | |||||
|
13128
|
13128
13128-1186 SHAFT OUTPUT |
13128-1186 |
from US $145.76 |
||
|
13129
|
13129
13129010 LOW GEAR OUTPUT SHAFT |
13129010 |
from US $54.59 |
||
|
13129A
|
13129A
13129-1138 2ND&3RD GEAR,DRIVE |
13129-1138 |
US $70.61 |
||
|
13129B
|
13129B
13129-1139 4TH GEAR,DRIVE SHAFT |
13129-1139 |
US $56.97 |
||
|
13129C
|
13129C
13129-1146 TOP GEAR,DRIVE SHAFT |
13129-1146 |
US $56.97 |
||
|
13129D
|
13129D
13129-1148 3RD GEAR,OUTPUT SHAFT |
13129-1148 |
US $62.51 |
||
|
13129E
|
13129E
13129-1149 TOP GEAR,OUTPUT SHAFT |
13129-1149 |
from US $54.59 |
||
|
13129F
|
13129F
13129-1642 GEAR-OUTPUT 2ND,30T |
13129-1642 |
US $60.03 |
||
|
13129G
|
13129G
13129-1708 GEAR-TRANSMISSION SPU |
13129-1708 |
US $78.59 |
||
|
13144
|
13144
13144054 ENGINE SPROCKET,1ST |
13144054 |
US $45.81 |
||
|
92001
|
92001
92001-1368
BOLT,UPSET,8X16
|
92001-1368 |
— | ||
|
92022
|
92022
92022-053 WASHER THRUST |
92022-053 |
from US $2.65 |
||
|
92022A
|
92022A
92022-115 WASHER THRUST |
92022-115 |
from US $2.65 |
||
|
92022B
|
92022B
92022-146 WASHER THRUST |
92022-146 |
from US $4.05 |
||
|
92022C
|
92022C
92022-266 WASHER,ENGINE SPRCKT |
92022-266 |
from US $3.17 |
||
|
92022D
|
92022D
92022-271 WASHER,PLAIN |
92022-271 |
from US $3.17 |
||
|
92024
|
92024
92024-030 WASHER-LOCK |
92024-030 |
from US $3.27 |
||
|
92027
|
92027
92027-1595 COLLAR,ENG SPROCKET |
92027-1595 |
from US $10.43 |
||
|
92030
|
92030
92030-012 WASHER,LOCK,8MM |
92030-012 |
US $6.70 |
||
|
92033
|
92033
92033-014 CIRCLIP |
92033-014 |
from US $2.95 |
||
|
92055
|
92055
92055-022 0 RING |
92055-022 |
from US $3.48 |
||
