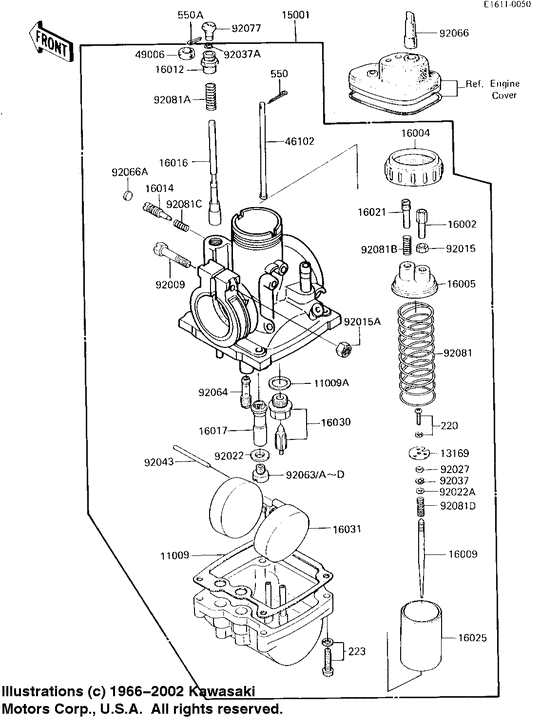

Carburetor (Ke100-b5, us) Diagram Kawasaki KE100
- Year
- 1986
- Model code
- KE100-B5
- Sales region
- USA
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0308
SCREW PAN HEAD 3X8
Screw pan head 3x8; Us |
220B0308 |
— | ||
| replacement | |||||
|
220
|
220
220AA0308 SCREW-PAN-CROSScrew pan head 3x8; Us |
220AA0308 |
from US $0.79 |
||
|
223
|
223
223B0418 SCREW-PAN-WS-CROSUs |
223B0418 |
US $2.56 |
||
| replacement | |||||
|
223
|
223
223AA0418 SCREW-PAN-WS-CROSUs |
223AA0418 |
from US $1.09 |
||
|
550
|
550
550D1210
PIN COTTER 1.2X10
Pin cotter 1.2x10; Us |
550D1210 |
— | ||
| replacement | |||||
|
550
|
550
550AA1210 PIN-COTTER,1.2X10Pin cotter 1.2x10; Us |
550AA1210 |
from US $1.12 |
||
|
550A
|
550A
550D1615
PIN COTTER 1.6X15
Pin cotter 1.6x15; Us |
550D1615 |
— | ||
| replacement | |||||
|
550A
|
550A
550AA1615 PIN-COTTER,1.6X15Pin cotter 1.6x15; Us |
550AA1615 |
from US $0.72 |
||
|
11009
|
11009
16019-021 GASKET,FLOAT CHAMBERGasket,float chamber; Us |
16019-021 |
from US $12.82 |
||
|
11009A
|
11009A
16029-002 WASHER VALVE SEATWasher valve seat; Us |
16029-002 |
from US $3.17 |
||
|
13169
|
13169
13169-1676 PLATEUs |
13169-1676 |
from US $5.76 |
||
|
15001
|
15001
15001-1220 CARBURETOR-ASSYUs |
15001-1220 |
from US $408.32 |
||
|
16002
|
16002
16002-017 ADJUSTER,CABLEAdjuster,cable; Us |
16002-017 |
from US $9.50 |
||
|
16004
|
16004
16004-010 CAP MIXING CHAMBERCap mixing chamber; Us |
16004-010 |
from US $12.60 |
||
|
16005
|
16005
16004-010 CAP MIXING CHAMBERCap mixing chamber; Us |
16004-010 |
from US $12.60 |
||
|
16009
|
16009
16009-1289 NEEDLE-JET,4EJ39Needle-jet,4ej39; Us |
16009-1289 |
from US $23.79 |
||
|
16012
|
16012
16012-021
CAP,STARTER PLUNGER
Cap,starter plunger; Us |
16012-021 |
— | ||
|
16014
|
16014
16014-002 SCREW PILOT AIR ADJSTScrew pilot air adjst; Us |
16014-002 |
from US $11.35 |
||
|
16016
|
16016
16016-012 PLUNGER,STARTERPlunger,starter; Us |
16016-012 |
from US $28.61 |
||
|
16017
|
16017
16017-1299 JET-NEEDLE,O-1Jet-needle,o-1; Us |
16017-1299 |
US $36.31 |
||
|
16021
|
16021
16021-002 SCREW,THROTTLE STOPScrew,throttle stop; Us |
16021-002 |
from US $11.52 |
||
|
16025
|
16025
16025-1013 VALV,THROTTLE,CA2.0Valv,throttle,ca2.0; Us |
16025-1013 |
US $117.70 |
||
|
16030
|
16030
16030-001 FLOAT VALVE ASSYFloat valve assy; Us |
16030-001 |
from US $34.83 |
||
|
16031
|
16031
16031-015 FLOATUs |
16031-015 |
from US $34.83 |
||
|
46102
|
46102
16024-012 ROD,THROTTLE VLV STPRod,throttle vlv stp; Us |
16024-012 |
US $6.88 |
||
|
49006
|
49006
16036-012 CAP,STARTER PLUNGERCap,starter plunger; Us |
16036-012 |
from US $7.78 |
||
| replacement | |||||
|
49006
|
49006
16039-015 CAP,RUBBER,STARTER PLCap,starter plunger; Us |
16039-015 |
from US $4.75 |
||
|
92009
|
92009
16010-004 SCREW CLAMPScrew clamp; Us |
16010-004 |
from US $3.27 |
||
|
92015
|
92015
16003-004 NUT CABLE ADJUST LOCKNut cable adjust lock; Us |
16003-004 |
from US $4.59 |
||
|
92015A
|
92015A
92015-1026 NUT,6M/MNut,6m/m; Us |
92015-1026 |
from US $3.57 |
||
|
92022
|
92022
16034-001 WASHER MAIN JETWasher main jet; Us |
16034-001 |
from US $3.01 |
||
|
92022A
|
92022A
92022-1024 WASHER,THROTTLE VALVEWasher,throttle valve; Us |
92022-1024 |
from US $3.57 |
||
|
92027
|
92027
92027-1103 RING,JET NEEDLERing,jet needle; Us |
92027-1103 |
from US $4.12 |
||
|
92037
|
92037
16008-010 CIRCLIPCirclip; Us |
16008-010 |
from US $6.65 |
||
|
92037A
|
92037A
92037-1077
CIRCLIP
Circlip; Us |
92037-1077 |
— | ||
|
92043
|
92043
16032-003
PIN,FLOAT
Float pin; Us |
16032-003 |
— | ||
| replacement | |||||
|
92043
|
92043
16032-008 PIN,FLOATFloat pin; Us |
16032-008 |
from US $4.20 |
||
|
92063
|
92063
92063-1030 MAIN JET, #A80Main jet, #a80; Us |
92063-1030 |
from US $8.71 |
||
|
92063A
|
92063A
92063-1032 MAIN JET,#77.5RMain jet,#77.5r; Us (racing use only) |
92063-1032 |
from US $8.71 |
||
|
92063B
|
92063B
92063-1111 JET-MAIN,#A75Jet-main,#a75; Us (racing use only) |
92063-1111 |
US $10.73 |
||
|
92063C
|
92063C
92063-1322 JET-MAIN,#A82,5RJet-main,#a82,5r; Us (racing use only) |
92063-1322 |
from US $8.71 |
||
|
92063D
|
92063D
92063-1323 JET-MAIN,#A85RJet-main,#a85r; Us (racing use only) |
92063-1323 |
from US $8.71 |
||
|
92064
|
92064
92064-1018 PILOT JET,#A15Pilot jet,#a15; Us |
92064-1018 |
from US $10.57 |
||
|
92066
|
92066
16147001 PLUG,CARBURETOR CAPPlug,carburetor cap; Us |
16147001 |
from US $3.31 |
||
|
92066A
|
92066A
92066-1051 PLUG,PILOT SCREWPlug,pilot screw; Us |
92066-1051 |
from US $3.17 |
||
|
92077
|
92077
92077-022 KNOB,CARBURETORKnob,carburetor; Us |
92077-022 |
US $6.38 |
||
|
92081
|
92081
16006-013 SPRING THROTTLE VALVESpring throttle valve; Us |
16006-013 |
from US $9.33 |
||
|
92081A
|
92081A
16013-010
SPRING,STARTER PLUNGR
Spring,starter plungr; Us |
16013-010 |
— | ||
|
92081B
|
92081B
16022-005 SPRING THR STOP SCREWSpring thr stop screw; Us |
16022-005 |
from US $6.81 |
||
|
92081C
|
92081C
16022-007 SPRING,PILOT AIR SCRESpring-thr stop screw; Us |
16022-007 |
from US $5.44 |
||
|
92081D
|
92081D
92081-1072 SPRING,JET NEEDLESpring,jet needle; Us |
92081-1072 |
from US $3.11 |
||
