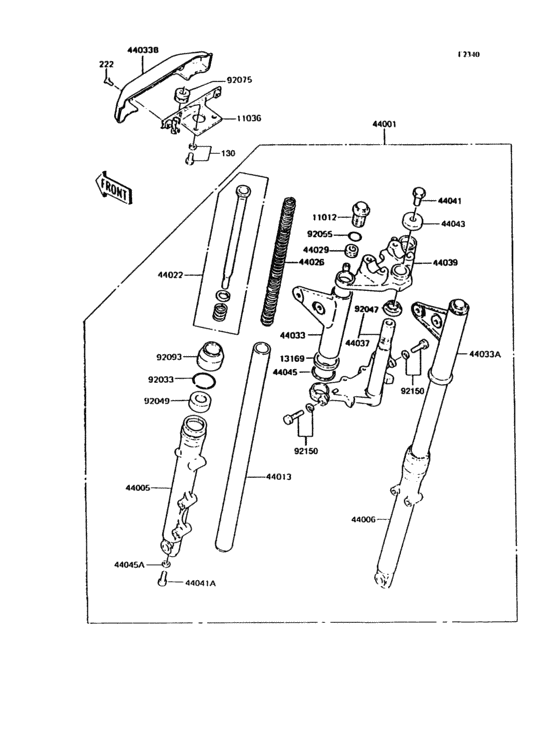

Front fork Diagram Kawasaki KH125 GTO Speedster
- Year
- 1994
- Colour
- Ebony (H8)
- Model code
- KH125-K9
- Sales region
- Europe (General)
- Engine Capacity
- 125
- Model
- KH125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0612
BOLT,FLANGE,6X12
|
130D0612 |
— | ||
| replacements | |||||
|
130
|
130
130AA0612 BOLT,FLANGE,6X12 |
130AA0612 |
from US $1.05 |
||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
11012
|
11012
11012-1087 BOLT,FORK TOP |
11012-1087 |
US $19.15 |
||
|
11036
|
11036
11036-1506
BRACKET-A
|
11036-1506 |
— | ||
|
13169
|
13169
13169-1191 GUIDE,FORK COVER |
13169-1191 |
US $5.35 |
||
|
44001
|
44001
44001-1896
FORK-FRONT
|
44001-1896 |
— | ||
|
44005
|
44005
44005-1342
PIPE-LEFT FORK OUTER
|
44005-1342 |
— | ||
|
44006
|
44006
44006-1340
PIPE-RIGHT FORK OUTER
|
44006-1340 |
— | ||
|
44013
|
44013
44013-1024 TUBE,FORK INNER |
44013-1024 |
US $178.79 |
||
|
44022
|
44022
44022-1026
Cylinder-fork
|
44022-1026 |
— | ||
| replacement | |||||
|
44022
|
44022
44022-1042
No longer available
|
44022-1042 |
— | ||
|
44026
|
44026
44026-1158 SPRING-FRONT FORK,L=4 |
44026-1158 |
US $26.60 |
||
|
44029
|
44029
44029-1013 NUT,FORK TOP |
44029-1013 |
from US $7.62 |
||
|
44033
|
44033
44033-1069 COVER-FORK,LH |
44033-1069 |
US $63.85 |
||
|
44033A
|
44033A
44033-1070 COVER-FORK,RH |
44033-1070 |
US $63.85 |
||
|
44033B
|
44033B
44033-1101
COVER-FORK
|
44033-1101 |
— | ||
|
44037
|
44037
44037-1025 STEM,STEERING |
44037-1025 |
US $206.05 |
||
|
44039
|
44039
44039-1021 HOLDER-FORK UPPER |
44039-1021 |
US $150.17 |
||
| replacement | |||||
|
44039
|
44039
44039-1050 HOLDER-FORK UPPER |
44039-1050 |
from US $137.02 |
||
|
44041
|
44041
44041007
BOLT STRNG STEM HEAD
|
44041007 |
— | ||
|
44041A
|
44041A
44041040 BOLT-FORK CYLINDER |
44041040 |
from US $4.44 |
||
|
44043
|
44043
44043016
WASHER STRNG STEM HD
|
44043016 |
— | ||
|
44045
|
44045
44045012 GASKET FORK COVER |
44045012 |
US $2.86 |
||
|
44045A
|
44045A
44045057 GASKET,FORK CYLINDER |
44045057 |
from US $3.33 |
||
|
92033
|
92033
92033-1038 RING-SNAP |
92033-1038 |
from US $2.85 |
||
|
92047
|
92047
92047-013 RACE, STRG STEM BRG |
92047-013 |
from US $10.61 |
||
| replacement | |||||
|
92047
|
92047
92048-0034 Race,steering Stem Be |
92048-0034 |
US $12.63 |
||
|
92049
|
92049
92049-1049 OIL SEAL |
92049-1049 |
from US $11.51 |
||
|
92055
|
92055
92055-1062 O RING,22MM |
92055-1062 |
US $3.60 |
||
| replacement | |||||
|
92055
|
92055
670B2022 O RING,22MM |
670B2022 |
from US $2.85 |
||
|
92075
|
92075
92075-1086 DAMPER RUBBER,MUFFLER |
92075-1086 |
from US $3.48 |
||
|
92093
|
92093
92093-1028
DUST SHIELD,FORK OUT
|
92093-1028 |
— | ||
|
92150
|
92150
92150-1814
BOLT,10X36
|
92150-1814 |
— | ||
