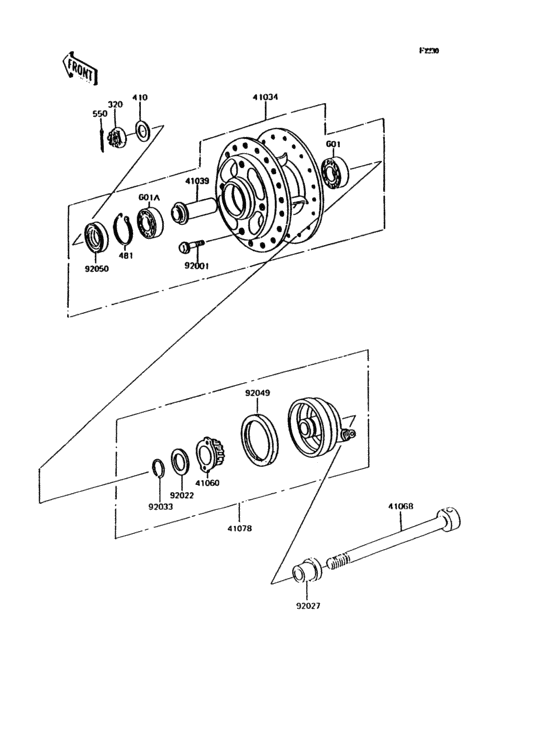

Front hub Diagram Kawasaki KH125 GTO Speedster
- Year
- 1994
- Colour
- Ebony (H8)
- Model code
- KH125-K9
- Sales region
- Europe (General)
- Engine Capacity
- 125
- Model
- KH125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
320
|
320
320G1200 Nut-castle |
320G1200 |
US $1.43 |
||
| replacements | |||||
|
320
|
320
92210-7501 NUT,12MM |
92210-7501 |
from US $1.90 |
||
|
320
|
320
320BA1200 NUT,12MM |
320BA1200 |
from US $1.43 |
||
|
410
|
410
410B1200 WASHER PLAIN 12MM |
410B1200 |
from US $0.95 |
||
| replacement | |||||
|
410
|
410
410AA1200 WASHER-PLAIN-SMALL,12 |
410AA1200 |
from US $0.95 |
||
|
481
|
481
481J3700 CIRCLIP.37MM |
481J3700 |
from US $1.58 |
||
|
550
|
550
550D3025
PIN-COTTER,3.0X25
|
550D3025 |
— | ||
| replacement | |||||
|
550
|
550
550AA3025 PIN-COTTER,3.0X25 |
550AA3025 |
from US $0.82 |
||
|
601
|
601
601B6201G BEARING-BALL,#6201C3 |
601B6201G |
US $9.29 |
||
| replacement | |||||
|
601
|
601
601B6201 BEARING-BALL,#6201C3 |
601B6201 |
from US $9.82 |
||
|
601A
|
601A
601B6301G BEARING BALL #6301 |
601B6301G |
from US $12.83 |
||
| replacement | |||||
|
601A
|
601A
601B6301
BEARING BALL #6301
|
601B6301 |
— | ||
|
41034
|
41034
41034-1028
DRUM ASSY,FRONT BRAKE
|
41034-1028 |
— | ||
|
41039
|
41039
41039034 COLLAR,L=43 |
41039034 |
from US $10.39 |
||
|
41060
|
41060
41060-1103 GEAR-METER SCREW,21T |
41060-1103 |
US $19.64 |
||
|
41068
|
41068
41068-1090
AXLE,FR
|
41068-1090 |
— | ||
|
41078
|
41078
41078-1052
CASE-ASSY-METER GEAR
|
41078-1052 |
— | ||
| replacement | |||||
|
41078
|
41078
41078-0057 CASE-ASSY-METER GEAR |
41078-0057 |
from US $88.96 |
||
|
92001
|
92001
92001-1324 BOLT, FLANGED, 8X25 |
92001-1324 |
from US $3.62 |
||
|
92022
|
92022
92022-1510 WASHER,20X29X1.0 |
92022-1510 |
from US $2.85 |
||
|
92027
|
92027
92027-1001 COLLAR,L=29 |
92027-1001 |
from US $12.19 |
||
|
92033
|
92033
92033-1160 RING-SNAP,19MM |
92033-1160 |
from US $2.85 |
||
|
92049
|
92049
92049-1173 SEAL-OIL,SD42 50 6 |
92049-1173 |
from US $12.51 |
||
| replacement | |||||
|
92049
|
92049
92049-0741 シ-ル42X50X6; オイル |
92049-0741 |
from US $11.56 |
||
|
92050
|
92050
92050-059 OIL SEAL,FR BK DRUM |
92050-059 |
from US $13.94 |
||
