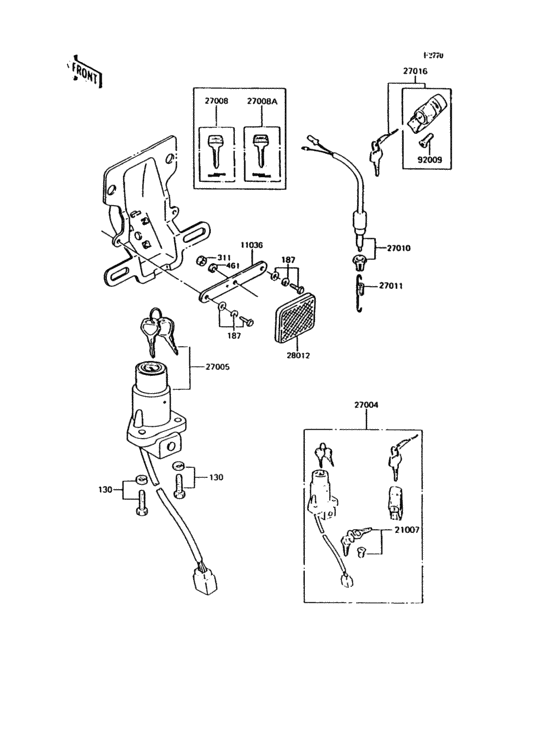

Ignition switch Diagram Kawasaki KH125 GTO Speedster
- Year
- 1994
- Colour
- Ebony (H8)
- Model code
- KH125-K9
- Sales region
- Europe (General)
- Engine Capacity
- 125
- Model
- KH125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0614
BOLT-FLANGED,6X14
|
130D0614 |
— | ||
| replacements | |||||
|
130
|
130
130AA0614 BOLT-FLANGED |
130AA0614 |
from US $0.82 |
||
|
130
|
130
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
187
|
187
187C0612 BOLT-UPSET-WSP |
187C0612 |
from US $1.43 |
||
| replacement | |||||
|
187
|
187
187AB0612 BOLT-UPSET-WSP |
187AB0612 |
from US $1.24 |
||
|
311
|
311
311B0500
NUT-HEX,5MM
|
311B0500 |
— | ||
| replacement | |||||
|
311
|
311
311AA0500 NUT-HEX,5MM |
311AA0500 |
from US $0.78 |
||
|
461
|
461
461F0500
WASHER-SPRING
|
461F0500 |
— | ||
| replacement | |||||
|
461
|
461
461DA0500 WASHER-SPRING |
461DA0500 |
from US $0.48 |
||
|
11036
|
11036
11036-1572
BRACKET-A,REFLECTOR
|
11036-1572 |
— | ||
|
21007
|
21007
21007-5004 LOCK, TANK CAP |
21007-5004 |
from US $40.46 |
||
|
27004
|
27004
27004-5132
SWITCH-ASSY
|
27004-5132 |
— | ||
|
27005
|
27005
27005-1055
SWITCH-ASSY-IGNITION
|
27005-1055 |
— | ||
|
27008
|
27008
27008-1034 KEY-LOCK,BLANK,#A |
27008-1034 |
from US $13.94 |
||
|
27008A
|
27008A
27008-1035 KEY-LOCK,BLANK |
27008-1035 |
US $15.71 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1105 KEY-LOCK,BLANK |
27008-1105 |
from US $12.83 |
||
|
27010
|
27010
27010025 SWITCH,BRAKE LIGHT |
27010025 |
from US $19.64 |
||
|
27011
|
27011
27011015 SPRING,BRAKE LIGHT SW |
27011015 |
from US $7.44 |
||
|
27016
|
27016
27016-5029
LOCK-ASSY,HELMET
|
27016-5029 |
— | ||
| replacements | |||||
|
27016
|
27016
27016-5285
ロツクアツシ，ヘルメツト
|
27016-5285 |
— | ||
|
27016
|
27016
92009-1547 SCREW,5X18 |
92009-1547 |
US $3.48 |
||
|
28012
|
28012
28012-1054
Reflector-reflex,rr
|
28012-1054 |
— | ||
| replacement | |||||
|
28012
|
28012
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
92009
|
92009
92009-1547 SCREW,5X18 |
92009-1547 |
US $3.48 |
||
