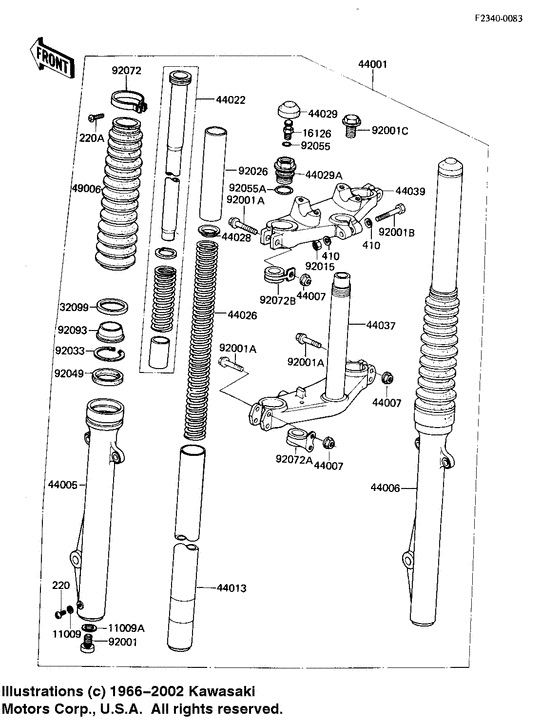

Front fork Diagram Kawasaki KL250 KLR250
- Year
- 1982
- Model code
- KL250-A5
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KLR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
220A
|
220A
220B0420 SCREW-PAN-CROS,4X20 |
220B0420 |
US $4.48 |
||
| replacements | |||||
|
220A
|
220A
220AA0420 SCREW-PAN-CROS,4X20 |
220AA0420 |
from US $0.79 |
||
|
220A
|
220A
220AB0420 SCREW-PAN-CROS,4X20 |
220AB0420 |
from US $1.29 |
||
|
410
|
410
410B0800
WASHER-PLAIN-SMALL,8M
Washer plain 8mm; |
410B0800 |
— | ||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
11009
|
11009
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
11009A
|
11009A
44045057 GASKET,FORK CYLINDERGasket,fork cylinder; |
44045057 |
from US $3.33 |
||
|
16126
|
16126
16126-1003
VALVE ASSY,AIR
Valve assy,air; |
16126-1003 |
— | ||
|
32099
|
32099
32099-1012
CASE,DUST SHIELD
Case,dust shield; |
32099-1012 |
— | ||
|
44001
|
44001
44001-1434
FORK-FRONT
|
44001-1434 |
— | ||
|
44005
|
44005
44005-1026
TUBE,LH,FORK OUTER
Tube,lh,fork outer; |
44005-1026 |
— | ||
|
44006
|
44006
44006-1026
TUBE,RH,FORK OUTER
Tube,rh,fork outer; |
44006-1026 |
— | ||
|
44007
|
44007
44007-1002 NUT,8M/MNut,8m/m; |
44007-1002 |
US $3.11 |
||
|
44013
|
44013
44013-1093 TUBE, FORK INNERTube, fork inner; |
44013-1093 |
US $296.96 |
||
|
44022
|
44022
44022-1022
CYLINDER-FORK
|
44022-1022 |
— | ||
|
44026
|
44026
44026-1033 SPRING,FORK INNERSpring,fork inner; |
44026-1033 |
US $28.46 |
||
|
44028
|
44028
44028033 GUIDE,FORK SPRINGGuide,fork spring; |
44028033 |
US $7.15 |
||
|
44029
|
44029
44029-1009
CAP,RUBBER,FORK TOP
Cap,rubber,fork top; |
44029-1009 |
— | ||
|
44029A
|
44029A
44029-1011 CAP,FORK TOPCap,fork top; |
44029-1011 |
US $66.29 |
||
|
44037
|
44037
44037-1023
STEM,STEERING
Stem,steering; |
44037-1023 |
— | ||
| replacement | |||||
|
44037
|
44037
44037-1047
STEM,STEERING,SWD
Stem,steering; |
44037-1047 |
— | ||
|
44039
|
44039
44039-1019 HEAD,STEERING STEMHead,steering stem; |
44039-1019 |
US $194.49 |
||
|
49006
|
49006
49006-1009
BOOT,FORK,BLACK
Boots,fork; |
49006-1009 |
— | ||
| replacement | |||||
|
49006
|
49006
49006-1009-BD
BOOT,FORK,BLACK
Boots,fork; |
49006-1009-BD |
— | ||
|
92001
|
92001
44041040 BOLT-FORK CYLINDERBolt-fork cylinder; |
44041040 |
from US $4.44 |
||
|
92001A
|
92001A
92001-1205 BOLT,FLANGED,8X45Bolt,flanged,8x45; |
92001-1205 |
from US $6.84 |
||
|
92001B
|
92001B
92002-1168 BOLT,8X50Bolt,8x50; |
92002-1168 |
US $4.57 |
||
|
92001C
|
92001C
92001-1316 BOLT,FLANGED,14X20Bolt,flanged,14x20; |
92001-1316 |
from US $12.24 |
||
|
92015
|
92015
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
92026
|
92026
92026-1053 SPACER,FORK INNER SPRSpacer,fork inner spr; |
92026-1053 |
US $9.23 |
||
|
92033
|
92033
92033-1100 RING-SNAP,FORK OILRing-snap,fork oil; |
92033-1100 |
from US $7.46 |
||
|
92049
|
92049
92049-1009 SEAL-OIL,FORK OUTER POil,seal,fork outer; |
92049-1009 |
US $17.35 |
||
| replacement | |||||
|
92049
|
92049
92049-1216 SEAL-OIL,FORK OUTER POil,seal,fork outer; |
92049-1216 |
from US $15.05 |
||
|
92055
|
92055
92055-1018
0 RING,AIR VALVE
"0" ring,air valve; |
92055-1018 |
— | ||
|
92055A
|
92055A
92055-1051 0 RING,FORK TOP"0" ring,fork top; |
92055-1051 |
from US $3.17 |
||
|
92072
|
92072
92072-1008 BAND,BOOTBand,boots; |
92072-1008 |
US $8.41 |
||
| replacement | |||||
|
92072
|
92072
92072-1168 BAND,BOOTBand,boots; |
92072-1168 |
from US $6.38 |
||
|
92072A
|
92072A
92072-1027
Clamp, Cable
Clamp,cable; |
92072-1027 |
— | ||
|
92072B
|
92072B
92072-1045
Clamp, Cable
Clamp,cable; |
92072-1045 |
— | ||
|
92093
|
92093
92093-1036
DUST SHIELD,FORK OUT
Dust shield,fork out; |
92093-1036 |
— | ||
