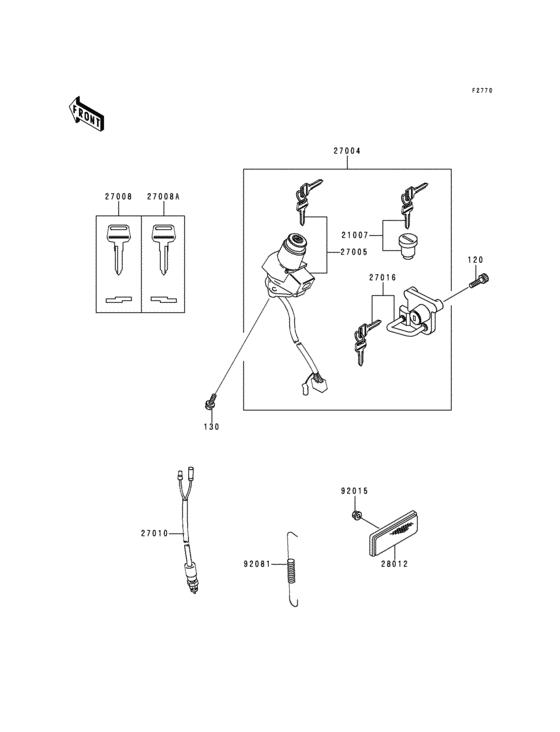

Ignition switch Diagram Kawasaki KL250 KLR250
- Year
- 1994
- Colour
- Ebony (H8)
- Model code
- KL250-D11
- Sales region
- Europe
- Engine Capacity
- 250
- Model
- KLR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0612 BOLT-SOCKET,6X12 |
120S0612 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CB0612 BOLT-SOCKET,6X12 |
120CB0612 |
from US $1.11 |
||
|
130
|
130
130D0614
BOLT-FLANGED,6X14
|
130D0614 |
— | ||
| replacements | |||||
|
130
|
130
130AA0614 BOLT-FLANGED |
130AA0614 |
from US $0.82 |
||
|
130
|
130
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
21007
|
21007
21007-5022 SWITCH-ASSY,TANK CAP |
21007-5022 |
US $61.76 |
||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27004
|
27004
27004-5397 SWITCH-ASSY |
27004-5397 |
from US $224.98 |
||
|
27005
|
27005
27005-1103 SWITCH-ASSY-IGNITION |
27005-1103 |
from US $194.57 |
||
|
27008
|
27008
27008-1034 KEY-LOCK,BLANK,#A |
27008-1034 |
from US $13.94 |
||
|
27008A
|
27008A
27008-1035 KEY-LOCK,BLANK |
27008-1035 |
US $15.71 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1105 KEY-LOCK,BLANK |
27008-1105 |
from US $12.83 |
||
|
27010
|
27010
27010-1019
SWITCH,REAR BRAKE
|
27010-1019 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-1474 SWITCH,REAR BRAKE |
27010-1474 |
from US $21.84 |
||
|
27016
|
27016
27016-5075 LOCK-ASSY,HELMET |
27016-5075 |
from US $86.62 |
||
|
28012
|
28012
28012-1078 Reflector-reflex |
28012-1078 |
from US $17.74 |
||
| replacement | |||||
|
28012
|
28012
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92081
|
92081
92081-1704 SPRING,BRAKE LAMP SWI |
92081-1704 |
from US $5.07 |
||
