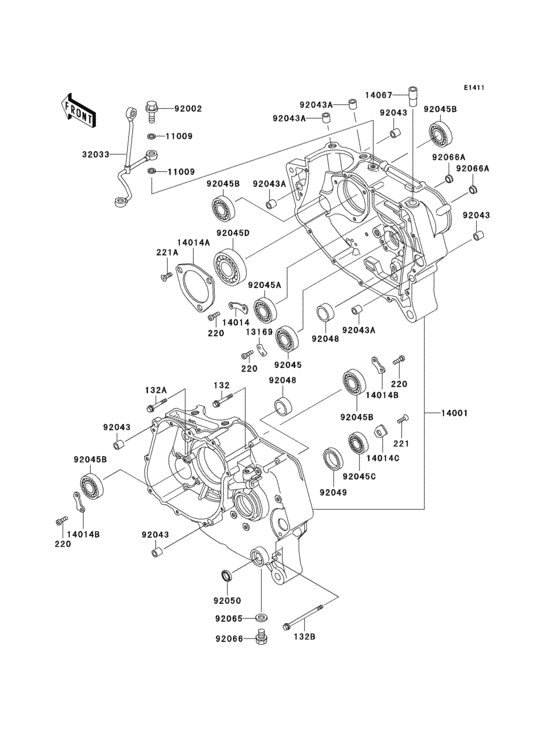

Crankcase Diagram Kawasaki KL250 KLR250
- Year
- 2000
- Colour
- Olive Green (HA)
- Model code
- KL250-D17
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- KLR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0640
BOLT,6X40
|
132J0640 |
— | ||
| replacements | |||||
|
132
|
132
132BB0640 BOLT,6X40 |
132BB0640 |
from US $3.01 |
||
|
132
|
132
92002-1566 BOLT,6X40 |
92002-1566 |
from US $3.01 |
||
|
132A
|
132A
132J0650 BOLT-FLANGED-SMALL |
132J0650 |
US $3.67 |
||
| replacement | |||||
|
132A
|
132A
132BB0650 BOLT-FLANGED-SMALL |
132BB0650 |
from US $1.27 |
||
|
132B
|
132B
132J0670 BOLT-FLANGED-SMALL |
132J0670 |
from US $1.90 |
||
| replacement | |||||
|
132B
|
132B
132BB0670 BOLT-FLANGED-SMALL |
132BB0670 |
from US $1.43 |
||
|
220
|
220
220B0612 Screw-pan head,6x12 |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
220
|
220
220AA0612 SCREW-PAN-CROSS,6X12 |
220AA0612 |
from US $0.91 |
||
|
220
|
220
214B0612
Screw-pan+-
|
214B0612 |
— | ||
|
221
|
221
221B0612 SCREW-CSK-CROSS,6X12 |
221B0612 |
US $1.37 |
||
| replacement | |||||
|
221
|
221
221AA0612 SCREW-CSK-CROSS,6X12 |
221AA0612 |
from US $0.95 |
||
|
221A
|
221A
221B0616 SCREW-CSK-CROS |
221B0616 |
from US $0.34 |
||
| replacement | |||||
|
221A
|
221A
221AA0616 SCREW-CSK-CROS |
221AA0616 |
from US $0.92 |
||
|
11009
|
11009
11009-1105 GASKET,10X14.5X1.5 |
11009-1105 |
from US $4.75 |
||
|
13169
|
13169
13169014 PLATE,GEAR CHANGE |
13169014 |
from US $3.67 |
||
|
14001
|
14001
14001-5180 SET-CRANKCASE |
14001-5180 |
from US $861.01 |
||
|
14014
|
14014
14014037 PLATE,POSITIONING |
14014037 |
from US $3.17 |
||
|
14014A
|
14014A
14014-1004 PLATE,POSITIONING |
14014-1004 |
from US $8.55 |
||
|
14014B
|
14014B
14014-1014 PLATE-POSITION |
14014-1014 |
from US $3.33 |
||
|
14014C
|
14014C
14014-1057 PLATE-POSITION |
14014-1057 |
from US $3.33 |
||
|
14067
|
14067
14067006 BREATHER JOINT |
14067006 |
from US $15.05 |
||
|
32033
|
32033
32033-1427 Pipe |
32033-1427 |
from US $95.15 |
||
|
92002
|
92002
92002-1170 BOLT,BANJO,10X25 |
92002-1170 |
from US $6.02 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92043A
|
92043A
92043-4009 PIN,10.1X12X14 |
92043-4009 |
from US $3.64 |
||
|
92045
|
92045
92045-036 BEARING,BALL,#6905 |
92045-036 |
from US $21.38 |
||
|
92045A
|
92045A
92045-1041 BEARING-BALL |
92045-1041 |
from US $22.59 |
||
|
92045B
|
92045B
92045-1118 BEARING-BALL,6004TMB |
92045-1118 |
from US $19.01 |
||
|
92045C
|
92045C
92045-1127 BEARING-BALL |
92045-1127 |
from US $33.21 |
||
|
92045D
|
92045D
92045-1172 BEARING-BALL |
92045-1172 |
from US $39.79 |
||
|
92048
|
92048
92048-1057 RACE,26X33X13 |
92048-1057 |
from US $22.89 |
||
|
92049
|
92049
92049-1159
SEAL-OIL
|
92049-1159 |
— | ||
| replacement | |||||
|
92049
|
92049
92049-1577 SEAL-OIL |
92049-1577 |
from US $7.92 |
||
|
92050
|
92050
92050-082 OIL SEAL,CHANGE SHAFT |
92050-082 |
from US $5.54 |
||
|
92065
|
92065
92065-097 GASKET,12X22X2,DRAIN PLUG |
92065-097 |
from US $1.61 |
||
|
92066
|
92066
92066-1174 PLUG,OIL DRAIN,12X15 |
92066-1174 |
from US $4.44 |
||
|
92066A
|
92066A
92066-1282 PLUG |
92066-1282 |
from US $3.96 |
||
