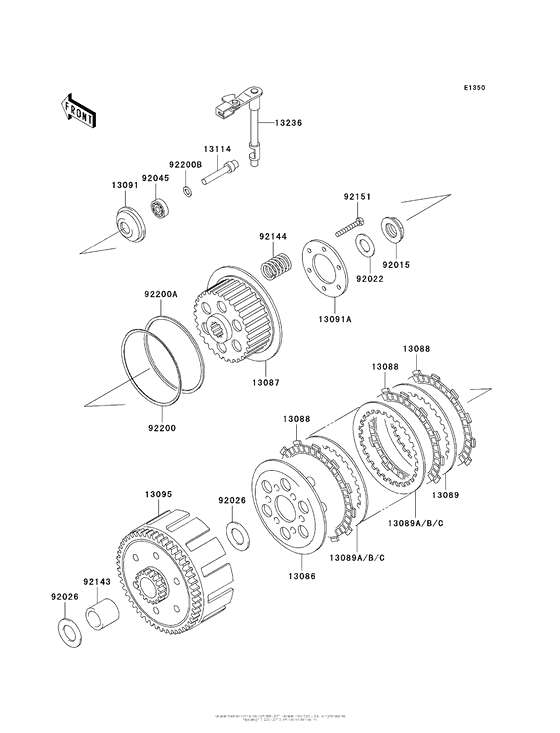

Clutch Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13086
|
13086
13086-1072 WHEEL-CLUTCH |
13086-1072 |
from US $29.17 |
||
|
13087
|
13087
13087-1150 Hub-clutch |
13087-1150 |
from US $96.34 |
||
|
13088
|
13088
13088-1125 PLATE-FRICTION |
13088-1125 |
from US $17.65 |
||
|
13089
|
13089
13089-1085 PLATE-CLUTCH |
13089-1085 |
from US $10.77 |
||
|
13089A
|
13089A
13089-1094 PLATE-CLUTCH,T=1.6 |
13089-1094 |
from US $10.77 |
||
|
13089B
|
13089B
13089-1116 PLATE-CLUTCH,T=2.0 |
13089-1116 |
from US $10.77 |
||
|
13089C
|
13089C
13089-1117 PLATE-CLUTCH,T=1.2 |
13089-1117 |
from US $10.77 |
||
|
13091
|
13091
13091-1134 HOLDER,CLUTCH PUSHER |
13091-1134 |
from US $9.98 |
||
|
13091A
|
13091A
13091-1683 HOLDER,CLUTCH SPRING |
13091-1683 |
from US $15.68 |
||
|
13095
|
13095
13095-1352 HOUSING-COMP-CLUTCH |
13095-1352 |
from US $339.77 |
||
| replacement | |||||
|
13095
|
13095
13095-0576 HOUSING-COMP-CLUTCH |
13095-0576 |
from US $321.93 |
||
|
13114
|
13114
13114-1068 PUSHER-CLUTCH |
13114-1068 |
from US $17.11 |
||
|
13236
|
13236
13236-1295 LEVER-COMP |
13236-1295 |
from US $31.57 |
||
|
92015
|
92015
92015-1581 NUT |
92015-1581 |
from US $12.20 |
||
|
92022
|
92022
92022-1356 WASHER,16.3X29X1.75 |
92022-1356 |
from US $4.80 |
||
|
92026
|
92026
92026-1496 SPACER,20.3X36X2.0 |
92026-1496 |
from US $8.08 |
||
|
92045
|
92045
92045-1236 BEARING-BALL |
92045-1236 |
from US $17.42 |
||
|
92143
|
92143
92143-1959 COLLAR |
92143-1959 |
from US $17.90 |
||
|
92144
|
92144
92144-1996 SPRING,CLUTCH |
92144-1996 |
from US $2.69 |
||
|
92151
|
92151
92151-1218 BOLT,5X35 |
92151-1218 |
from US $1.43 |
||
|
92200
|
92200
92200-1079 WASHER,JUDDER SPRING |
92200-1079 |
from US $6.49 |
||
|
92200A
|
92200A
92200-1080 WASHER,JUDDER PLATE |
92200-1080 |
from US $5.39 |
||
|
92200B
|
92200B
92200-1197 WASHER,7X12.5X0.8 |
92200-1197 |
from US $2.38 |
||
