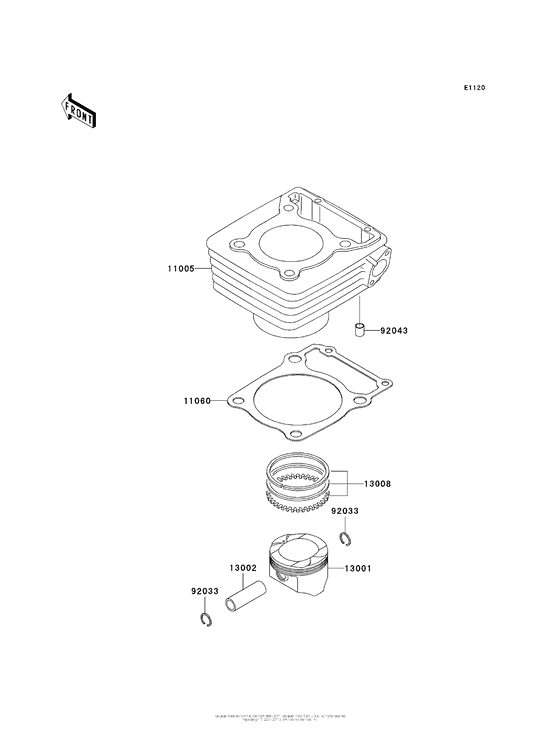

Cylinder/piston(S) Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11005
|
11005
11005-1860 CYLINDER-ENGINE |
11005-1860 |
from US $497.39 |
||
|
11060
|
11060
11060-1740
GASKET,CYLINDER BASE
|
11060-1740 |
— | ||
| replacements | |||||
|
11060
|
11060
11061-1506 Gasket,cylinder Base |
11061-1506 |
from US $9.66 |
||
|
11060
|
11060
11061-1307
Gasket,cylinder Base
|
11061-1307 |
— | ||
|
13001
|
13001
13001-1492 PISTON-ENGINE |
13001-1492 |
from US $118.47 |
||
|
13002
|
13002
13002-1073 PIN-PISTON |
13002-1073 |
from US $19.64 |
||
|
13008
|
13008
13008-1177 RING-SET-PISTON |
13008-1177 |
from US $58.15 |
||
|
92033
|
92033
92033-1054 RING-SNAP |
92033-1054 |
from US $2.38 |
||
|
92043
|
92043
92043-4009 PIN,10.1X12X14 |
92043-4009 |
from US $3.64 |
||
