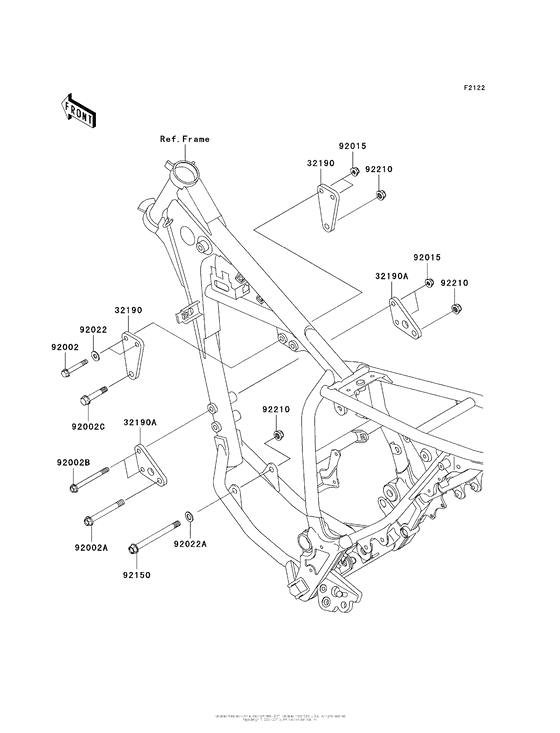

Engine Mount Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32190
|
32190
32190-1099 BRACKET-ENGINE,HEAD |
32190-1099 |
from US $18.37 |
||
|
32190A
|
32190A
32190-1100 BRACKET-ENGINE,FR |
32190-1100 |
from US $20.75 |
||
|
92002
|
92002
92002-1221 BOLT |
92002-1221 |
from US $5.07 |
||
|
92002A
|
92002A
92002-1674 BOLT,10X90 |
92002-1674 |
from US $10.93 |
||
|
92002B
|
92002B
92002-1849 BOLT,FLANGED,8X90 |
92002-1849 |
from US $5.07 |
||
|
92002C
|
92002C
92002-1936 BOLT |
92002-1936 |
from US $5.39 |
||
|
92015
|
92015
92015-1432 NUT,8MM |
92015-1432 |
from US $3.80 |
||
|
92022
|
92022
92022-1561 WASHER,8.5X20X1.6 |
92022-1561 |
from US $2.69 |
||
|
92022A
|
92022A
92022-1768 WASHER,11.5X20.5X1.6 |
92022-1768 |
from US $3.01 |
||
|
92150
|
92150
92150-1642 BOLT,FLANGED,10X120 |
92150-1642 |
from US $10.87 |
||
|
92210
|
92210
92210-1080 NUT |
92210-1080 |
from US $6.49 |
