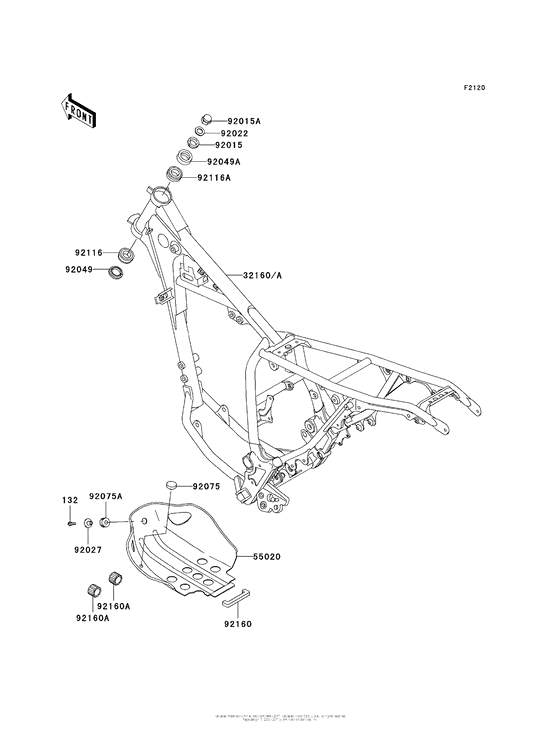

Frame Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
|
32160A
|
32160A
32160-0141-18R FRAME-COMP,F.S.BLACK |
32160-0141-18R |
from US $1,735.15 |
||
|
55020
|
55020
55020-1734 GUARD,ENGINE |
55020-1734 |
from US $177.14 |
||
|
92015
|
92015
92015-1546 NUT |
92015-1546 |
from US $12.99 |
||
|
92015A
|
92015A
92015-1867 NUT,STEERING STEM,22M |
92015-1867 |
from US $10.93 |
||
|
92022
|
92022
92022-1873 WASHER |
92022-1873 |
from US $4.75 |
||
|
92027
|
92027
92152-0365 COLLAR |
92152-0365 |
from US $0.91 |
||
|
92049
|
92049
92049-1162 SEAL-OIL,XMHE36X52X4J |
92049-1162 |
from US $7.13 |
||
|
92049A
|
92049A
92049-1214 SEAL-OIL,STEERING STE |
92049-1214 |
from US $12.74 |
||
|
92075
|
92075
92075-005 DAMPER RUBB MAIN STND |
92075-005 |
from US $2.85 |
||
|
92075A
|
92075A
92075-1690 DAMPER |
92075-1690 |
from US $3.90 |
||
|
92116
|
92116
92116-1009 BRG,ROLLER,HR320/28XJ |
92116-1009 |
from US $20.91 |
||
|
92116A
|
92116A
92116-1052 BEARING-ROLLER,25X47X |
92116-1052 |
from US $20.94 |
||
|
92160
|
92160
92160-1835 DAMPER |
92160-1835 |
from US $3.96 |
||
|
92160A
|
92160A
92160-1884 DAMPER |
92160-1884 |
from US $4.12 |
