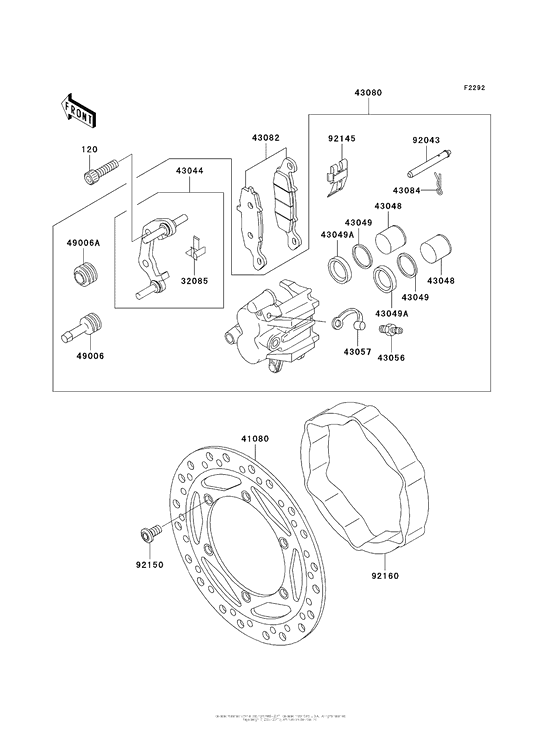

Front Brake Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CC0830 BOLT-SOCKET,8X30 |
120CC0830 |
from US $1.90 |
||
|
32085
|
32085
32085-1437 STOPPER |
32085-1437 |
from US $9.19 |
||
|
41080
|
41080
41080-0140-CM DISC,FR,SLIVER |
41080-0140-CM |
from US $258.16 |
||
|
43044
|
43044
43044-1119 HOLDER-COMP-CALIPER,F |
43044-1119 |
from US $89.46 |
||
|
43048
|
43048
43048-1083 PISTON-CALIPER |
43048-1083 |
from US $34.86 |
||
|
43049
|
43049
43049-1059 PACKING,PISTON |
43049-1059 |
from US $7.08 |
||
|
43049A
|
43049A
43049-1090 PACKING,PISTONPacking, piston seal; |
43049-1090 |
from US $7.75 |
||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $14.69 |
||
|
43057
|
43057
43057-003 CAP,BREEDER |
43057-003 |
from US $3.01 |
||
|
43080
|
43080
43080-0008 CALIPER-SUB-ASSY,FR,L |
43080-0008 |
from US $135.24 |
||
|
43082
|
43082
43082-1206 PAD-ASSY-BRAKE |
43082-1206 |
from US $58.04 |
||
|
43084
|
43084
43084003 CLIP |
43084003 |
from US $3.17 |
||
|
49006
|
49006
49006-1054 BOOT,CALIPER |
49006-1054 |
from US $8.55 |
||
|
49006A
|
49006A
49006-1055 BOOT,CALIPER |
49006-1055 |
from US $4.91 |
||
|
92043
|
92043
92043-1356 PIN,PAD |
92043-1356 |
from US $6.97 |
||
|
92145
|
92145
92145-1260 SPRING,PAD |
92145-1260 |
from US $9.35 |
||
|
92150
|
92150
92150-1852 BOLT,DISC PLATE,8X15 |
92150-1852 |
from US $2.85 |
||
|
92160
|
92160
92160-1876 DAMPER |
92160-1876 |
from US $27.68 |
