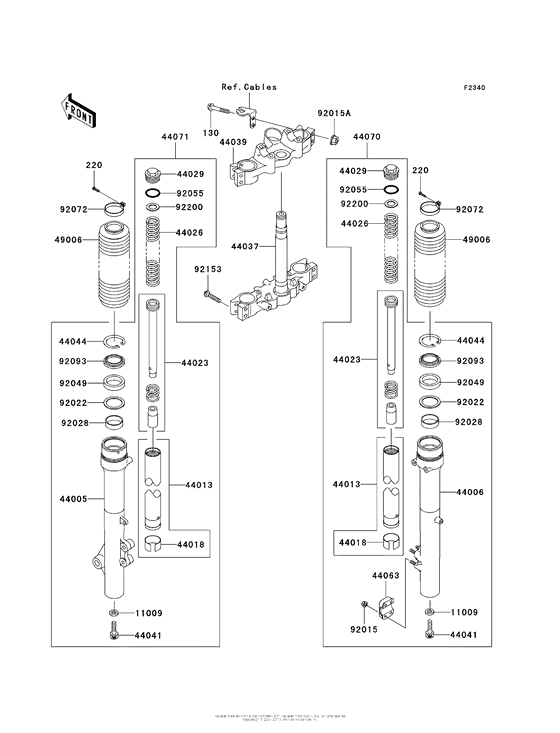

Front Fork Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0850 BOLT-FLANGED,8X50 |
130BA0850 |
from US $1.40 |
||
|
220
|
220
220AA0416 SCREW-PAN-CROS |
220AA0416 |
from US $0.94 |
||
|
11009
|
11009
44045057 GASKET,FORK CYLINDER |
44045057 |
from US $3.33 |
||
|
44005
|
44005
44005-0058 PIPE-LEFT FORK OUTER |
44005-0058 |
from US $380.71 |
||
|
44006
|
44006
44006-1401 PIPE-RIGHT FORK OUTER |
44006-1401 |
from US $380.71 |
||
|
44013
|
44013
44013-1468 PIPE-FORK INNER |
44013-1468 |
from US $330.32 |
||
|
44018
|
44018
44018-1058 PISTON-FORK |
44018-1058 |
from US $15.36 |
||
|
44023
|
44023
44023-1141 CYLINDER-SET-FORK |
44023-1141 |
from US $161.80 |
||
|
44026
|
44026
44026-1699 SPRING-FRONT FORK |
44026-1699 |
from US $79.69 |
||
|
44029
|
44029
44029-1160 SEAT-FORK SPRING |
44029-1160 |
from US $24.38 |
||
|
44037
|
44037
44037-0046 Holder-fork under |
44037-0046 |
from US $261.36 |
||
|
44039
|
44039
44039-1272 HOLDER-FORK UPPER |
44039-1272 |
from US $185.86 |
||
|
44041
|
44041
44041040 BOLT-FORK CYLINDER |
44041040 |
from US $4.44 |
||
|
44044
|
44044
92033-1100 RING-SNAP,FORK OIL |
92033-1100 |
from US $7.46 |
||
|
44063
|
44063
44063-1056 HOLDER-FRONT AXLE |
44063-1056 |
from US $37.85 |
||
|
44070
|
44070
44070-1776 DAMPER-ASSY,FORK,RH |
44070-1776 |
from US $688.64 |
||
|
44071
|
44071
44071-0409 DAMPER-ASSY,FORK,LH |
44071-0409 |
from US $688.64 |
||
|
49006
|
49006
49006-1312-BD BOOT,FORK,BLACK |
49006-1312-BD |
from US $56.40 |
||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MM |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1485 NUT,FLANGED,8MM |
92015-1485 |
from US $3.17 |
||
|
92022
|
92022
92022-1275 WASHER |
92022-1275 |
from US $3.96 |
||
|
92028
|
92028
92028-1656 BUSHING |
92028-1656 |
from US $10.61 |
||
|
92049
|
92049
92049-1470 SEAL-OIL,FORK OUTER T |
92049-1470 |
from US $12.51 |
||
|
92055
|
92055
92055-1051 0 RING,FORK TOP |
92055-1051 |
from US $3.17 |
||
|
92072
|
92072
92072-1347 BAND,BOOT |
92072-1347 |
from US $6.34 |
||
|
92093
|
92093
92093-1439 SEAL,FORK OUTER TUBE |
92093-1439 |
from US $10.77 |
||
|
92153
|
92153
92153-0484 BOLT,FLANGED,8X40 |
92153-0484 |
from US $1.43 |
||
|
92200
|
92200
92200-1259 WASHER |
92200-1259 |
from US $3.80 |
