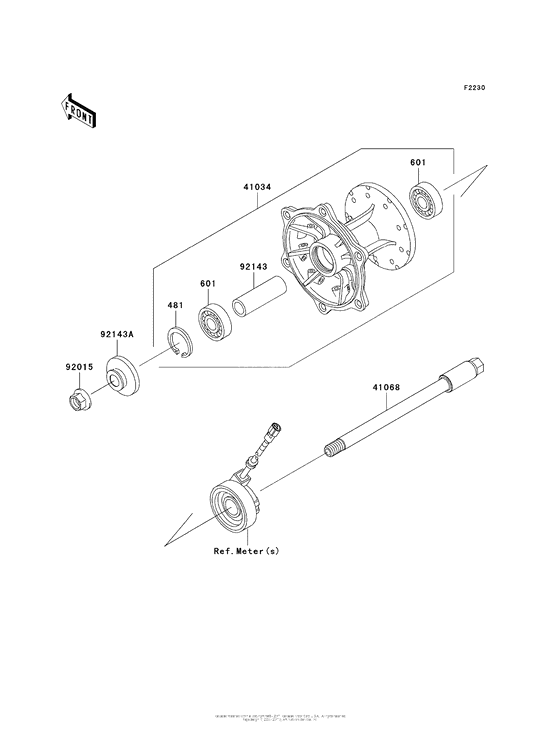

Front Hub Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
481
|
481
481J3500 CIRCLIP,35MM |
481J3500 |
from US $1.43 |
||
|
601
|
601
601B6202U BEARING,BALL,#6202UC3 |
601B6202U |
from US $14.57 |
||
|
41034
|
41034
41034-0007 DRUM-ASSY,FRONT BRAKE |
41034-0007 |
from US $271.52 |
||
|
41068
|
41068
41068-0601 AXLE,FR,15X194 |
41068-0601 |
from US $62.52 |
||
|
92015
|
92015
92015-1407 NUT,14MM |
92015-1407 |
from US $6.34 |
||
|
92143
|
92143
92143-1033 COLLAR,15.2X22X67 |
92143-1033 |
from US $13.46 |
||
|
92143A
|
92143A
92143-1918 COLLAR,FR AXLE,L=19.5 |
92143-1918 |
from US $17.90 |
