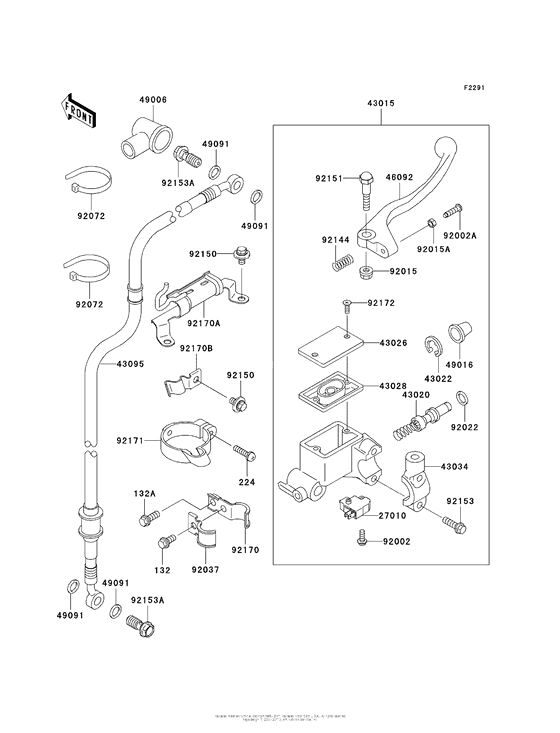

Front Master Cylinder Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
132A
|
132A
132BB0616 BOLT-FLANGED-SMALL,6X |
132BB0616 |
from US $1.11 |
||
|
224
|
224
224AA0520 SCREW-PAN-WP-CROS |
224AA0520 |
from US $0.82 |
||
|
27010
|
27010
27010-0025 SWITCH,BRAKE |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-0021 CYLINDER-ASSY-MASTER, |
43015-0021 |
from US $204.73 |
||
|
43020
|
43020
43020-1065 PISTON-COMP-BRAKE |
43020-1065 |
from US $34.41 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1081 CAP-BRAKE |
43026-1081 |
from US $17.42 |
||
|
43028
|
43028
43028-1061 DIAPHRAGM |
43028-1061 |
from US $11.72 |
||
|
43034
|
43034
43034-1144 HOLDER-BRAKE,MASTER C |
43034-1144 |
from US $14.10 |
||
|
43095
|
43095
43095-0161 HOSE-BRAKE,FR |
43095-0161 |
from US $102.27 |
||
|
46092
|
46092
46092-1199 LEVER-GRIP,FRONT BRAK |
46092-1199 |
from US $19.43 |
||
|
49006
|
49006
49006-1041 BOOT,DUST |
49006-1041 |
from US $9.35 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.08 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
92002
|
92002
92002-1323 BOLT |
92002-1323 |
from US $2.53 |
||
|
92002A
|
92002A
92002-1893 BOLT,ADJUST |
92002-1893 |
from US $4.75 |
||
|
92015
|
92015
92015-1528 NUT,FLANGED,6MM |
92015-1528 |
from US $3.17 |
||
|
92015A
|
92015A
92015-1642 NUT,ADJUST |
92015-1642 |
from US $2.53 |
||
|
92022
|
92022
92022-1814 WASHER |
92022-1814 |
from US $2.85 |
||
|
92037
|
92037
92037-1898 CLAMP,HOSE |
92037-1898 |
from US $5.54 |
||
|
92072
|
92072
92072-1195 BAND,L=185 |
92072-1195 |
from US $2.07 |
||
|
92144
|
92144
92144-1103 SPRING,RETURN |
92144-1103 |
from US $6.34 |
||
|
92150
|
92150
92150-1435 BOLT |
92150-1435 |
from US $2.69 |
||
|
92151
|
92151
92151-1215 BOLT,LEVER SET |
92151-1215 |
from US $4.75 |
||
|
92153
|
92153
92153-0547 BOLT |
92153-0547 |
from US $2.38 |
||
|
92153A
|
92153A
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
|
92170
|
92170
92170-1749 CLAMP,BRAKE HOSE |
92170-1749 |
from US $6.65 |
||
|
92170A
|
92170A
92170-1778 CLAMP,BRAKE HOSE |
92170-1778 |
from US $12.51 |
||
|
92170B
|
92170B
92170-1781 CLAMP,BRAKE HOSE |
92170-1781 |
from US $3.01 |
||
|
92171
|
92171
92171-1079 CLAMP,BRAKE HOSE |
92171-1079 |
from US $8.08 |
||
|
92172
|
92172
92172-0083 SCREW |
92172-0083 |
from US $2.38 |
