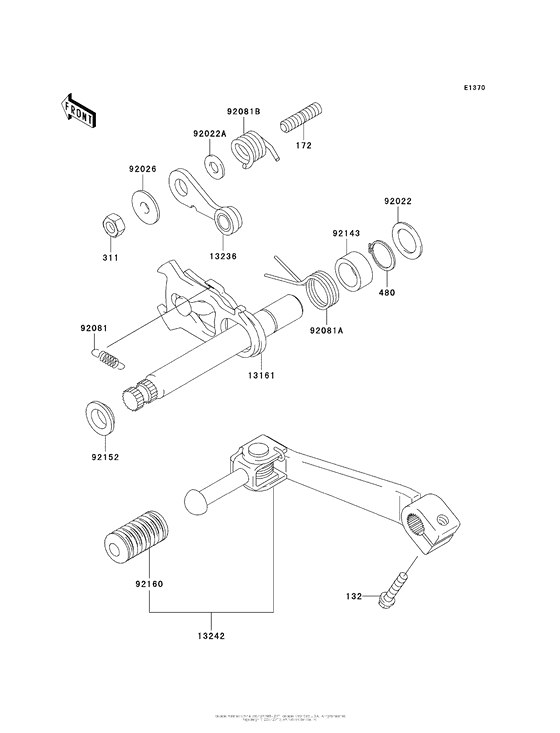

Gear Change Mechanism Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BC0620 BOLT-FLANGED-SMALL,6X |
132BC0620 |
from US $0.63 |
||
|
172
|
172
172BA0612 BOLT-STUD |
172BA0612 |
from US $1.11 |
||
|
311
|
311
311BA0600 NUT-HEX |
311BA0600 |
from US $0.95 |
||
|
480
|
480
480J1300 CIRCLIP,13MM |
480J1300 |
from US $1.11 |
||
|
13161
|
13161
13161-1242 LEVER-COMP-CHANGE SHA |
13161-1242 |
from US $47.12 |
||
|
13236
|
13236
13236-1209 LEVER-COMP,NEUTRAL PO |
13236-1209 |
from US $14.41 |
||
|
13242
|
13242
13242-1344 LEVER-ASSY-CHANGE,PED |
13242-1344 |
from US $51.91 |
||
| replacement | |||||
|
13242
|
13242
13242-0177 Lever-Assy-Change,Ped |
13242-0177 |
US $62.63 |
||
|
92022
|
92022
92022-1496 WASHER,13.3X20X1 |
92022-1496 |
from US $2.53 |
||
|
92022A
|
92022A
92022-1827 WASHER,6X12.8X1.2 |
92022-1827 |
from US $2.85 |
||
|
92026
|
92026
92026-1217 SPACER |
92026-1217 |
from US $3.33 |
||
|
92081
|
92081
92081-076 SPRING-CHANGE LEVER |
92081-076 |
from US $4.09 |
||
|
92081A
|
92081A
92081-1129 SPRING,TENTION |
92081-1129 |
from US $6.34 |
||
|
92081B
|
92081B
92081-1993 SPRING,POSITION LEVER |
92081-1993 |
from US $3.96 |
||
|
92143
|
92143
92143-1148 COLLAR |
92143-1148 |
from US $3.73 |
||
|
92152
|
92152
92152-1075 COLLAR |
92152-1075 |
from US $3.37 |
||
|
92160
|
92160
92160-1108 DAMPER,CHANGE PEDAL |
92160-1108 |
US $9.41 |
||
| replacement | |||||
|
92160
|
92160
92161-2381 DAMPER,CHANGE PEDAL |
92161-2381 |
from US $5.70 |
||
