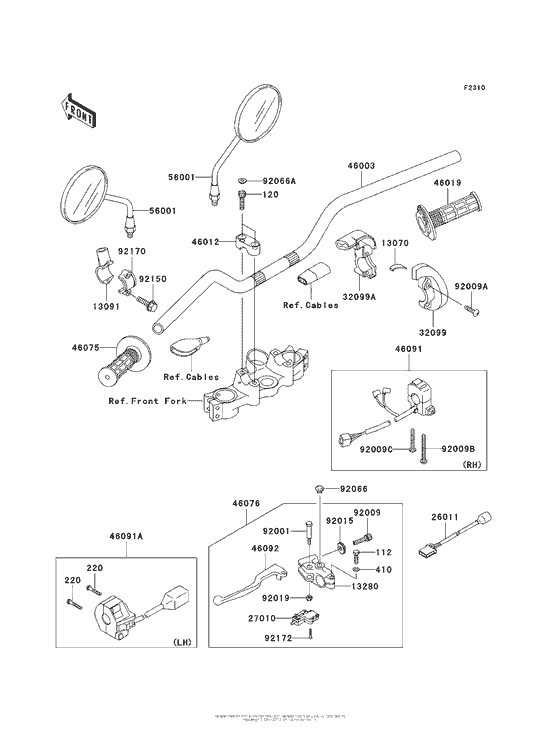

Handlebar Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112BA0622 BOLT-UPSET |
112BA0622 |
from US $1.61 |
||
|
120
|
120
120CB0830 BOLT-SOCKET,8X30,BLAC |
120CB0830 |
from US $1.27 |
||
|
220
|
220
220AB0530 SCREW-PAN-CROSS |
220AB0530 |
from US $0.95 |
||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
13070
|
13070
13070-1274 GUIDE,THROTTLE CABLE |
13070-1274 |
from US $3.33 |
||
|
13091
|
13091
13091-1995 HOLDER,MIRROR |
13091-1995 |
from US $30.22 |
||
|
13280
|
13280
13280-0348 HOLDER |
13280-0348 |
from US $38.07 |
||
|
26011
|
26011
26011-0268 WIRE-LEAD |
26011-0268 |
from US $21.64 |
||
|
27010
|
27010
27010-1094 SWITCH,CLUTCH |
27010-1094 |
from US $21.07 |
||
|
32099
|
32099
32099-1146 CASE,THROTTLE,UPP |
32099-1146 |
from US $20.28 |
||
|
32099A
|
32099A
32099-1186 CASE,THROTTLE,LWR |
32099-1186 |
from US $21.54 |
||
|
46003
|
46003
46003-0182 HANDLE |
46003-0182 |
from US $91.07 |
||
|
46012
|
46012
46012-1276 HOLDER-HANDLE,UPP |
46012-1276 |
from US $16.79 |
||
|
46019
|
46019
46019-1093 GRIP-ASSY,THROTTLE |
46019-1093 |
from US $25.13 |
||
|
46075
|
46075
46075-1149 GRIP,LH |
46075-1149 |
from US $16.79 |
||
|
46076
|
46076
46076-0065 LEVER-ASSY-GRIP |
46076-0065 |
from US $70.13 |
||
|
46091
|
46091
46091-1678 HOUSING-ASSY-CONTROL, |
46091-1678 |
from US $80.63 |
||
|
46091A
|
46091A
46091-1690 HOUSING-ASSY-CONTROL, |
46091-1690 |
from US $103.52 |
||
|
46092
|
46092
46092-1190 LEVER-GRIP,CLUTCH |
46092-1190 |
from US $26.18 |
||
|
56001
|
56001
56001-1339 MIRROR-ASSY |
56001-1339 |
from US $26.03 |
||
|
92001
|
92001
92001-1075 BOLT,CLUTCH LEVER FIT |
92001-1075 |
from US $4.44 |
||
|
92009
|
92009
46055003 SCREW CABLE ADJUST |
46055003 |
from US $11.09 |
||
|
92009A
|
92009A
92009-1699 SCREW,5X16 |
92009-1699 |
from US $2.38 |
||
|
92009B
|
92009B
92009-1803 SCREW |
92009-1803 |
from US $2.53 |
||
|
92009C
|
92009C
92009-1804 SCREW |
92009-1804 |
from US $2.53 |
||
|
92015
|
92015
46056005 NUT-LOCK |
46056005 |
from US $6.02 |
||
|
92019
|
92019
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8 |
92066-1077 |
from US $3.01 |
||
|
92066A
|
92066A
92066-1277 PLUG |
92066-1277 |
from US $3.96 |
||
|
92150
|
92150
92150-1474 BOLT,LEVER HOLDER |
92150-1474 |
from US $3.01 |
||
|
92170
|
92170
92170-1226 CLAMP |
92170-1226 |
from US $16.95 |
||
|
92172
|
92172
92172-0183 SCREW,3X16 |
92172-0183 |
from US $0.95 |
