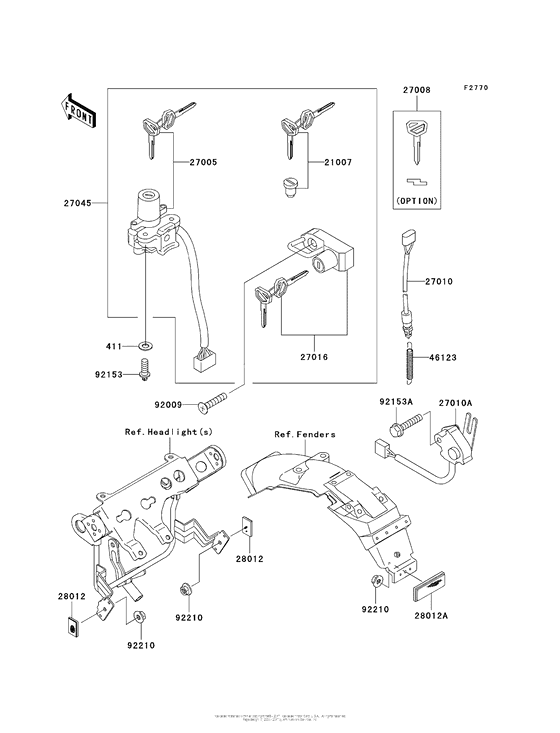

Ignition Switch Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $2.13 |
||
|
21007
|
21007
21007-5040
SWITCH-ASSY,TANK CAP
|
21007-5040 |
— | ||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27005
|
27005
27005-1203 SWITCH-ASSY-IGNITION |
27005-1203 |
from US $165.21 |
||
|
27008
|
27008
27008-1170 KEY-LOCK,BLANK |
27008-1170 |
from US $12.83 |
||
|
27010
|
27010
27010-1462 SWITCH,BRAKE LAMP |
27010-1462 |
from US $32.31 |
||
|
27010A
|
27010A
27010-1471 SWITCH,SIDE STAND |
27010-1471 |
from US $55.20 |
||
|
27016
|
27016
27016-5207 LOCK-ASSY,HELMET |
27016-5207 |
from US $49.22 |
||
|
27045
|
27045
27045-5038 SWITCH-ASSY |
27045-5038 |
from US $221.09 |
||
|
28012
|
28012
28012-1003 REFLECTOR,REFLEX(FRON |
28012-1003 |
from US $15.68 |
||
|
28012A
|
28012A
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
46123
|
46123
46123-1056 SPRING-COMP,REAR BRAK |
46123-1056 |
from US $5.86 |
||
|
92009
|
92009
92009-1753 SCREW |
92009-1753 |
from US $2.69 |
||
|
92153
|
92153
92153-0967 BOLT,TORX,6X16 |
92153-0967 |
from US $1.11 |
||
|
92153A
|
92153A
92153-1425 BOLT,FLANGED,6X30 |
92153-1425 |
from US $1.11 |
||
| replacement | |||||
|
92153A
|
92153A
92154-1857 BOLT,FLANGED,6X30 |
92154-1857 |
from US $0.95 |
||
|
92210
|
92210
92210-0007 NUT,FLANGED,5MM |
92210-0007 |
from US $1.61 |
||
