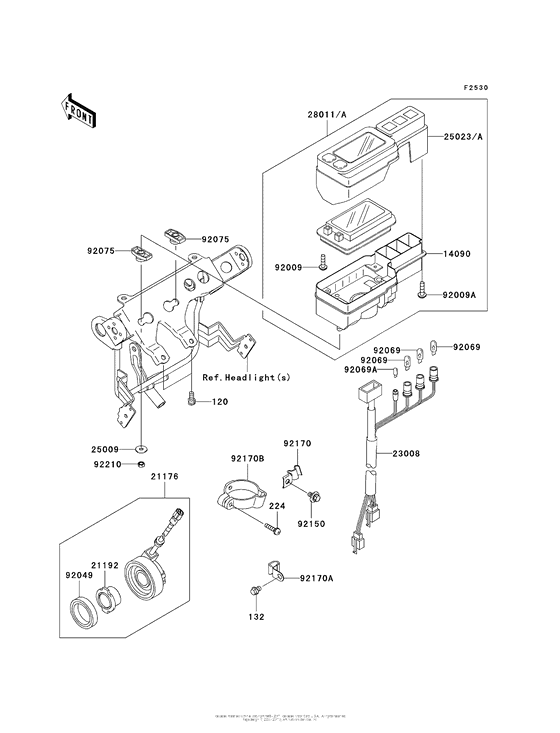

Meter(S) Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0612 BOLT-SOCKET,6X12 |
120CA0612 |
from US $0.79 |
||
|
132
|
132
132BA0608 BOLT-FLANGED-SMALL,6X |
132BA0608 |
from US $1.11 |
||
|
224
|
224
224AA0520 SCREW-PAN-WP-CROS |
224AA0520 |
from US $0.82 |
||
|
14090
|
14090
14090-1903 COVER,METER CASE,LWR |
14090-1903 |
from US $53.56 |
||
|
21176
|
21176
21176-0012 SENSOR,SPEED |
21176-0012 |
from US $328.15 |
||
|
21192
|
21192
21192-0001 MAGNET,SPEED SENSOR |
21192-0001 |
from US $22.44 |
||
|
23008
|
23008
23008-1579 SOCKET-ASSY,METER |
23008-1579 |
from US $53.56 |
||
|
25009
|
25009
25009-004
WASHER,5.2X16X16X1.2T
|
25009-004 |
— | ||
| replacement | |||||
|
25009
|
25009
92200-2276
Washer,5.2X16X1.2
|
92200-2276 |
— | ||
|
25023
|
25023
25023-0008 カバ-(メ-タケ-ス)，upp |
25023-0008 |
US $32.76 |
||
|
25023A
|
25023A
25023-1250 Cover-meter case,upp |
25023-1250 |
from US $41.05 |
||
|
28011
|
28011
28011-0019 メ-タ，デジタル |
28011-0019 |
US $509.65 |
||
|
28011A
|
28011A
28011-1195
METER,DIGITAL,MPH
|
28011-1195 |
— | ||
|
92009
|
92009
92009-1028
SCREW,TAPPING,3X12,BL
|
92009-1028 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1326 SCREW,3X12 |
92009-1326 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1592 SCREW,TAPPING,3X14 |
92009-1592 |
from US $2.38 |
||
|
92049
|
92049
92049-1172 SEAL-OIL,METER GEAR C |
92049-1172 |
from US $11.56 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4W |
92069-1007 |
from US $3.33 |
||
|
92069A
|
92069A
92069-1068 BULB,14V 3W |
92069-1068 |
from US $3.33 |
||
|
92075
|
92075
92075-1581 DAMPER,METER BRACKET |
92075-1581 |
from US $3.64 |
||
|
92150
|
92150
92150-1435 BOLT |
92150-1435 |
from US $2.69 |
||
|
92170
|
92170
92170-1782 CLAMP,HARNESS |
92170-1782 |
from US $3.01 |
||
|
92170A
|
92170A
92170-1804 CLAMP |
92170-1804 |
from US $3.17 |
||
|
92170B
|
92170B
92170-1852 CLAMP,METER HARNESS |
92170-1852 |
from US $9.03 |
||
|
92210
|
92210
92210-1124 NUT |
92210-1124 |
from US $1.43 |
||
