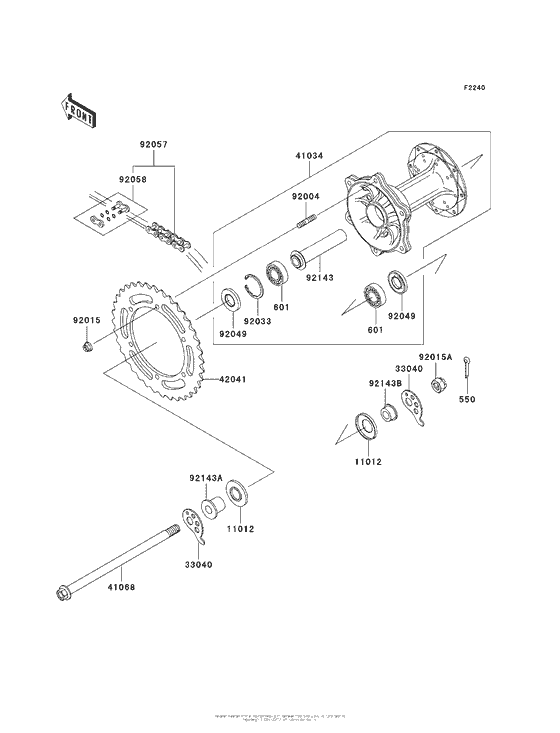

Rear Hub Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550AA3025 PIN-COTTER,3.0X25 |
550AA3025 |
from US $0.95 |
||
|
601
|
601
601B6302U BEARING-BALL |
601B6302U |
from US $22.89 |
||
|
11012
|
11012
11012-1581 CAP |
11012-1581 |
from US $4.75 |
||
|
33040
|
33040
33040-1163 ADJUSTER-CHAIN |
33040-1163 |
from US $21.38 |
||
|
41034
|
41034
41034-1306 DRUM-ASSY,REAR BRAKE |
41034-1306 |
from US $376.07 |
||
|
41068
|
41068
41068-1393 AXLE,RR |
41068-1393 |
from US $53.56 |
||
|
42041
|
42041
42041-1488 SPROCKET-HUB,43T |
42041-1488 |
from US $70.91 |
||
|
92004
|
92004
92004-1239 STUD |
92004-1239 |
from US $3.17 |
||
|
92015
|
92015
92015-1432 NUT,8MM |
92015-1432 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1765 NUT,CASTLE,14MM |
92015-1765 |
from US $6.34 |
||
|
92033
|
92033
92033-1041 CIRCLIP,42MM |
92033-1041 |
from US $3.48 |
||
|
92049
|
92049
92049-1314 SEAL-OIL,MHSA25 42 6 |
92049-1314 |
from US $8.55 |
||
|
92057
|
92057
92057-0017 CHAIN,DRIVE,EK520LV-O |
92057-0017 |
from US $158.58 |
||
|
92058
|
92058
92058-1100 JOINT-CHAIN,DRIVE |
92058-1100 |
from US $9.98 |
||
|
92143
|
92143
92143-1020 COLLAR,15.2X22X115 |
92143-1020 |
from US $12.04 |
||
|
92143A
|
92143A
92143-1924 COLLAR,RR AXLE,LH,L=2 |
92143-1924 |
from US $14.26 |
||
|
92143B
|
92143B
92143-1925 COLLAR,RR AXLE,RH,L=1 |
92143-1925 |
from US $8.55 |
