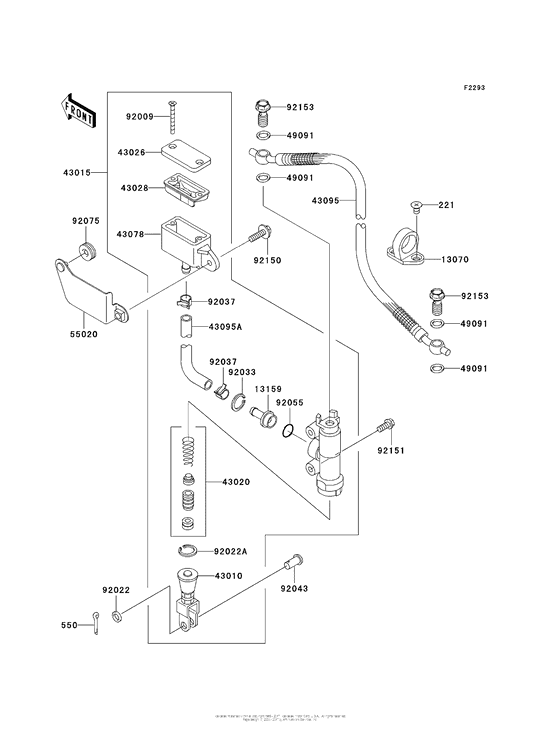

Rear Master Cylinder Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
221
|
221
221AA0610 SCREW-CNTSNK HD,6X10 |
221AA0610 |
from US $1.25 |
||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
13070
|
13070
13070-1322 GUIDE,HOSE |
13070-1322 |
from US $3.17 |
||
|
13159
|
13159
13159-1065 CONNECTOR |
13159-1065 |
from US $5.54 |
||
|
43010
|
43010
43010-1068 ROD-ASSY-BRAKE |
43010-1068 |
from US $34.86 |
||
|
43015
|
43015
43015-1707 CYLINDER-ASSY-MASTER, |
43015-1707 |
from US $204.73 |
||
|
43020
|
43020
43020-1094 PISTON-COMP-BRAKE |
43020-1094 |
from US $42.04 |
||
|
43026
|
43026
43026-1075 CAP-BRAKE |
43026-1075 |
from US $9.82 |
||
|
43028
|
43028
43028-1067 DIAPHRAGM |
43028-1067 |
from US $13.62 |
||
|
43078
|
43078
43078-1189 RESERVOIR |
43078-1189 |
from US $19.01 |
||
|
43095
|
43095
43095-0162 HOSE-BRAKE,RR |
43095-0162 |
from US $70.76 |
||
|
43095A
|
43095A
43095-1065 HOSE-BRAKE,RR MASTER |
43095-1065 |
from US $5.54 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
55020
|
55020
55020-1610 GUARD,RR MASTER RESER |
55020-1610 |
from US $7.92 |
||
|
92009
|
92009
92009-1596 SCREW |
92009-1596 |
from US $2.38 |
||
|
92022
|
92022
92022-1028 WASHER,PLAIN |
92022-1028 |
from US $3.20 |
||
|
92022A
|
92022A
92033-0079 RING-SNAP,20.9X24.6X1 |
92033-0079 |
from US $3.80 |
||
|
92033
|
92033
92033-1186 RING-SNAP,20.5MM |
92033-1186 |
from US $3.01 |
||
|
92037
|
92037
92037-1710 CLAMP |
92037-1710 |
from US $6.65 |
||
|
92043
|
92043
92043-0004 PIN |
92043-0004 |
from US $7.98 |
||
|
92055
|
92055
92055-0741 RING-O,14.8X2.4 |
92055-0741 |
from US $1.90 |
||
|
92075
|
92075
92075-1629 DAMPER |
92075-1629 |
from US $3.90 |
||
|
92150
|
92150
92150-1481 BOLT,FLANGED,6X22 |
92150-1481 |
from US $2.69 |
||
|
92151
|
92151
92151-1423
BOLT
|
92151-1423 |
— | ||
| replacement | |||||
|
92151
|
92151
132BC-0614 Bolt-Flanged-Small,6X |
132BC-0614 |
from US $0.48 |
||
|
92153
|
92153
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
