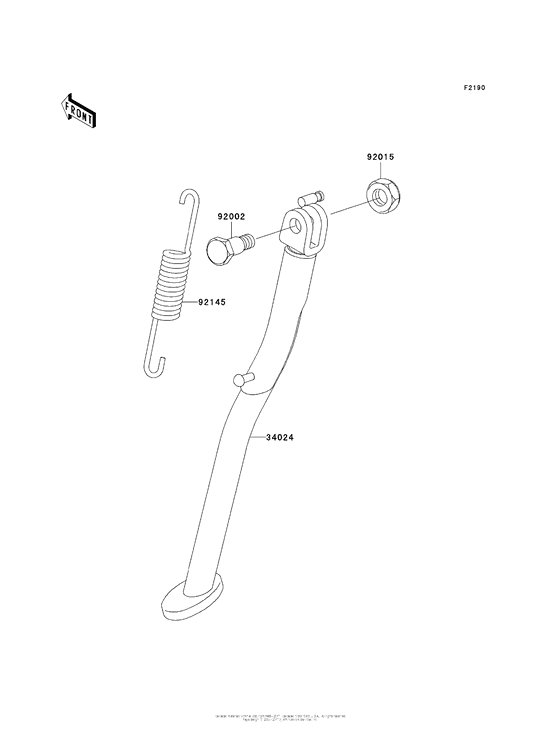

Stand(S) Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34024
|
34024
34024-1337 STAND-SIDE |
34024-1337 |
from US $64.03 |
||
|
92002
|
92002
92002-1813 BOLT,SIDE STAND |
92002-1813 |
from US $7.62 |
||
|
92015
|
92015
92015-1188 NUT,LOCK,10MM,BLACK |
92015-1188 |
from US $4.25 |
||
|
92145
|
92145
92145-0116 SPRING,SIDE STAND |
92145-0116 |
from US $6.97 |
