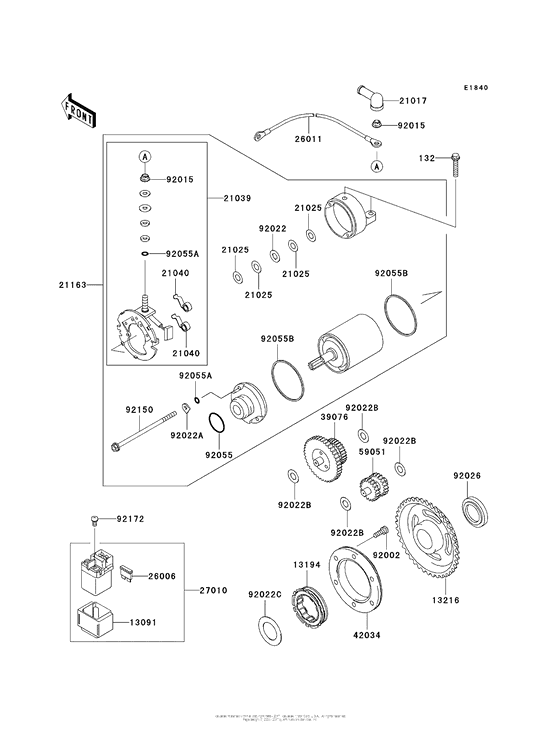

Starter Motor Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BC0630 BOLT-FLANGED-SMALL,6X |
132BC0630 |
from US $1.25 |
||
|
13091
|
13091
13280-0818 HOLDER |
13280-0818 |
from US $5.28 |
||
|
13194
|
13194
13193-0007 CLUTCH-ASSY-ONEWAYワンウエ |
13193-0007 |
from US $80.93 |
||
|
13216
|
13216
13216-1148 GEAR-COMP,ONEWAY CLUT |
13216-1148 |
from US $152.59 |
||
|
21017
|
21017
21017017 GROMMET,CORD |
21017017 |
from US $6.81 |
||
|
21025
|
21025
21025011 WASHER,THRUST,0.2T |
21025011 |
from US $4.28 |
||
|
21039
|
21039
21039-1062 BRUSH,CARBON |
21039-1062 |
from US $82.43 |
||
|
21040
|
21040
21040-1057 SPRING-BRUSH |
21040-1057 |
from US $6.18 |
||
|
21163
|
21163
21163-1256 Starter-electric |
21163-1256 |
from US $450.12 |
||
|
26006
|
26006
26006-1051 FUSE,BLADE,20A,YELLOW |
26006-1051 |
from US $3.33 |
||
|
26011
|
26011
26011-1604 WIRE-LEAD |
26011-1604 |
from US $49.07 |
||
|
27010
|
27010
27010-0765 SWITCH |
27010-0765 |
from US $90.98 |
||
|
39076
|
39076
39076-1069 LIMITER,STARTER IDLER |
39076-1069 |
from US $155.08 |
||
|
42034
|
42034
42034-1181 COUPLING |
42034-1181 |
from US $82.73 |
||
|
59051
|
59051
59051-1304 GEAR-SPUR,IDLE |
59051-1304 |
from US $67.02 |
||
| replacement | |||||
|
59051
|
59051
59051-0785 GEAR-SPUR,IDLE |
59051-0785 |
from US $58.64 |
||
|
92002
|
92002
92002-1778 BOLT,SOCKET,6X16 |
92002-1778 |
from US $3.01 |
||
|
92015
|
92015
92015-1476 NUT,6MM |
92015-1476 |
from US $2.69 |
||
|
92022
|
92022
92022-1132 WASHER,THRUST,0.8T |
92022-1132 |
from US $3.48 |
||
|
92022A
|
92022A
92022-1458 WASHER,LOCK,T=2.0 |
92022-1458 |
from US $3.48 |
||
|
92022B
|
92022B
92022-1649 WASHER,10.2X20X0.5 |
92022-1649 |
from US $2.69 |
||
|
92022C
|
92022C
92022-1781 WASHER,27.2X44X1.0 |
92022-1781 |
from US $3.80 |
||
|
92026
|
92026
92026-1450 SPACER |
92026-1450 |
from US $13.78 |
||
|
92055
|
92055
92055-1276 RING-O |
92055-1276 |
from US $7.62 |
||
|
92055A
|
92055A
92055-1370 RING-O,4.5X2.0 |
92055-1370 |
from US $2.85 |
||
|
92055B
|
92055B
92055-1381 RING-O,STARTER MOTOR |
92055-1381 |
from US $6.34 |
||
|
92150
|
92150
92150-1838 BOLT,STARTER MOTOR |
92150-1838 |
from US $6.81 |
||
|
92172
|
92172
92172-0234 SCREW,PAN-WS-CROS,5X1 |
92172-0234 |
from US $0.95 |
||
