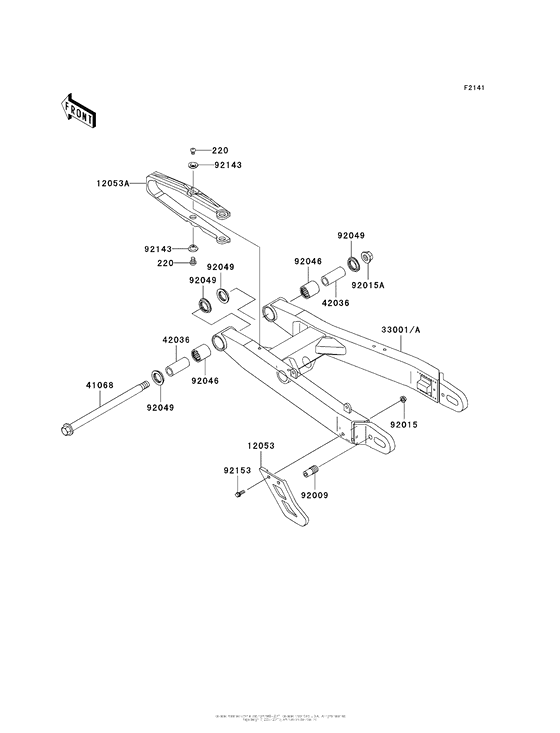

Swingarm Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0608 SCREW-PAN-CROS |
220AA0608 |
from US $0.92 |
||
|
12053
|
12053
12053-1389 GUIDE-CHAIN,RR |
12053-1389 |
from US $39.64 |
||
|
12053A
|
12053A
12053-1392 GUIDE-CHAIN,FR |
12053-1392 |
from US $22.44 |
||
|
33001A
|
33001A
33001-1526-458 ARM-COMP-SWING,P.SILV |
33001-1526-458 |
from US $745.47 |
||
|
41068
|
41068
41068-1078 AXLE,FR,15X242 |
41068-1078 |
from US $21.84 |
||
|
42036
|
42036
42036-1335 SLEEVE,15.1X22X52 |
42036-1335 |
from US $17.11 |
||
|
92009
|
92009
92009-1789 SCREW,SET,SOCKET,10X2 |
92009-1789 |
from US $4.75 |
||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MM |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1407 NUT,14MM |
92015-1407 |
from US $6.34 |
||
|
92046
|
92046
92046-1174 BEARING-NEEDLE,TA2230 |
92046-1174 |
from US $29.62 |
||
|
92049
|
92049
92049-1289 SEAL-OIL |
92049-1289 |
from US $5.70 |
||
|
92143
|
92143
92143-1156 COLLAR |
92143-1156 |
from US $4.44 |
||
|
92153
|
92153
92153-0695 BOLT,6X16 |
92153-0695 |
from US $1.27 |
