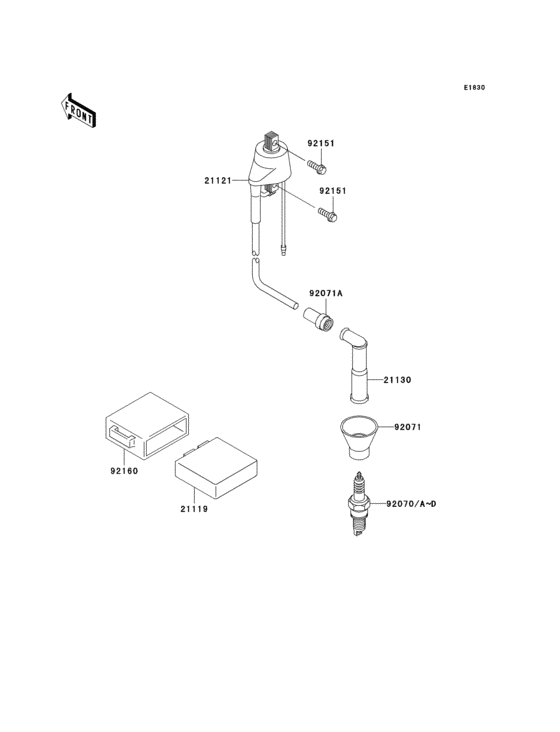

Ignition System Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2007
- Colour
- Ebony (H8)
- Model code
- KL250H7F
- Sales region
- Canada
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21119
|
21119
21119-1489 IGNITER |
21119-1489 |
from US $499.49 |
||
|
21121
|
21121
21121-1230 COIL-IGNITION |
21121-1230 |
from US $68.52 |
||
|
21130
|
21130
21130-1002
Cap-spark plug
|
21130-1002 |
— | ||
| replacement | |||||
|
21130
|
21130
21130-1010 Cap-spark plug |
21130-1010 |
from US $45.68 |
||
|
92070
|
92070
92070-0019 KA SPARK PLUG CR8E |
92070-0019 |
from US $10.80 |
||
|
92070C
|
92070C
92070-1209 SPARK PLUG, CR7E(NGK) |
92070-1209 |
from US $9 |
||
|
92070D
|
92070D
92070-1266 KA SPARK PLUG CR9E |
92070-1266 |
US $11.72 |
||
|
92071
|
92071
92071-1244 GROMMET,PLUG CAP |
92071-1244 |
from US $6.34 |
||
|
92071A
|
92071A
92071-1245 GROMMET,HIGH TENSION |
92071-1245 |
from US $3.64 |
||
|
92151
|
92151
92151-1311 BOLT-FLANGED-SMALL,6X |
92151-1311 |
from US $1.27 |
||
| replacement | |||||
|
92151
|
92151
132BC0618 BOLT-FLANGED-SMALL,6X |
132BC0618 |
from US $0.95 |
||
|
92160
|
92160
92160-1259 DAMPER,IGNITER |
92160-1259 |
from US $14.26 |
||
