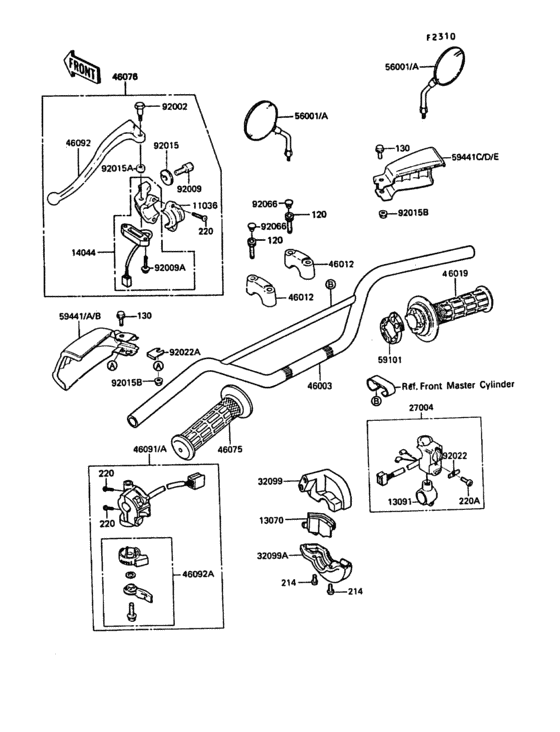

Handlebar(1/2) Diagram Kawasaki KL650 KLR650
- Year
- 1987
- Colour
- Brilliant Blue (C9)
- Model code
- KL650-A1
- Sales region
- Austria
- Engine Capacity
- 650
- Model
- KLR650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0830
BOLT-SOCKET,8X30,BLAC
|
120S0830 |
— | ||
| replacement | |||||
|
120
|
120
120CB0830 BOLT-SOCKET,8X30,BLAC |
120CB0830 |
from US $1.27 |
||
|
130
|
130
130J0612
BOLT-FLANGED,6X12
|
130J0612 |
— | ||
| replacement | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
214
|
214
214C0518 SCREW-PAN-CROS,5X18 |
214C0518 |
US $25.20 |
||
| replacement | |||||
|
214
|
214
220AB0518 SCREW-PAN-CROS,5X18 |
220AB0518 |
from US $0.79 |
||
|
220
|
220
220C0514
SCREW-PAN-CROSS
|
220C0514 |
— | ||
| replacement | |||||
|
220
|
220
220AB0514 SCREW-PAN-CROSS |
220AB0514 |
from US $1.25 |
||
|
220A
|
220A
220C0620 SCREW-PAN-CROSS |
220C0620 |
from US $1.27 |
||
| replacement | |||||
|
220A
|
220A
220AB0620 SCREW-PAN-CROSS |
220AB0620 |
from US $1.15 |
||
|
11036
|
11036
11036-1297
BRACKET,LEVER HOLDER
|
11036-1297 |
— | ||
| replacements | |||||
|
11036
|
11036
11056-0150
BRACKET,LEVER HOLDER
|
11056-0150 |
— | ||
|
11036
|
11036
11056-0036 BRACKET,LEVER HOLDER |
11056-0036 |
from US $9.33 |
||
|
11036
|
11036
11058-2777 BRACKET,LEVER HOLDER |
11058-2777 |
US $17.31 |
||
|
13070
|
13070
13070-1131 GUIDE |
13070-1131 |
from US $6.49 |
||
|
13091
|
13091
13091-1255 HOLDER,ENGINE STOP SW |
13091-1255 |
US $96.86 |
||
|
14044
|
14044
14044-1062 HOLDER-CABLE,CLUTCH |
14044-1062 |
from US $65.23 |
||
|
27004
|
27004
27004-1053
SWITCH-ASSY,ENGINE ST
|
27004-1053 |
— | ||
| replacement | |||||
|
27004
|
27004
27045-1052
SWITCH-ASSY,ENGINE ST
|
27045-1052 |
— | ||
|
32099
|
32099
32099-1072 CASE |
32099-1072 |
from US $22.74 |
||
|
32099A
|
32099A
32099-1073 CASE |
32099-1073 |
from US $22.74 |
||
|
46003
|
46003
46003-1153 HANDLE |
46003-1153 |
from US $105.02 |
||
|
46012
|
46012
46012-1102 HOLDER-HANDLE |
46012-1102 |
US $21.39 |
||
|
46019
|
46019
46019-1054 GRIP-ASSY,THROTTLE |
46019-1054 |
from US $26.33 |
||
|
46075
|
46075
46075-1051 GRIP,LH |
46075-1051 |
from US $18.53 |
||
|
46076
|
46076
46076-1142 LEVER-ASSY-GRIP,CLUTC |
46076-1142 |
from US $63.49 |
||
|
46091
|
46091
46091-1418 Housing-assy-control, |
46091-1418 |
US $182.95 |
||
|
46092
|
46092
46092-1111 LEVER-GRIP,CLUTCH |
46092-1111 |
US $23.79 |
||
| replacement | |||||
|
46092
|
46092
46092-0554 LEVER-GRIP,CLUTCH |
46092-0554 |
from US $21.31 |
||
|
46092A
|
46092A
46092-1123 LEVER-GRIP |
46092-1123 |
from US $19.11 |
||
|
56001
|
56001
56001-1204 MIRROR-ASSY |
56001-1204 |
from US $33.81 |
||
|
59101
|
59101
59101-1106 REEL |
59101-1106 |
US $12.51 |
||
|
59441B
|
59441B
59441-1073-6K COVER-HANDLE,LH,B.BLU |
59441-1073-6K |
from US $20.30 |
||
|
59441E
|
59441E
59441-1074-6K
COVER-HANDLE,RH,B.BLU
|
59441-1074-6K |
— | ||
|
92002
|
92002
92002-1880 BOLT,LEVER SET |
92002-1880 |
from US $12.99 |
||
|
92009
|
92009
46055009 SCREW,CABLE ADJUST |
46055009 |
from US $12.99 |
||
|
92009A
|
92009A
92009-1390 SCREW |
92009-1390 |
from US $2.53 |
||
|
92015
|
92015
46056006 NUT,CABLE ADJUST LOCK |
46056006 |
from US $6.02 |
||
|
92015A
|
92015A
92015-1191
NUT,LOCK,6MM
|
92015-1191 |
— | ||
| replacement | |||||
|
92015A
|
92015A
92210-0006 NUT,LOCK,6MM |
92210-0006 |
from US $1.27 |
||
|
92015B
|
92015B
92015-1603 NUT |
92015-1603 |
from US $2.85 |
||
|
92022
|
92022
92022-1474 WASHER,ENGINE STOP SW |
92022-1474 |
from US $2.85 |
||
|
92022A
|
92022A
92022-1896 WASHER |
92022-1896 |
from US $3.17 |
||
|
92066
|
92066
92066-1216 PLUG,HANDLE HOLDER |
92066-1216 |
from US $3.01 |
||
