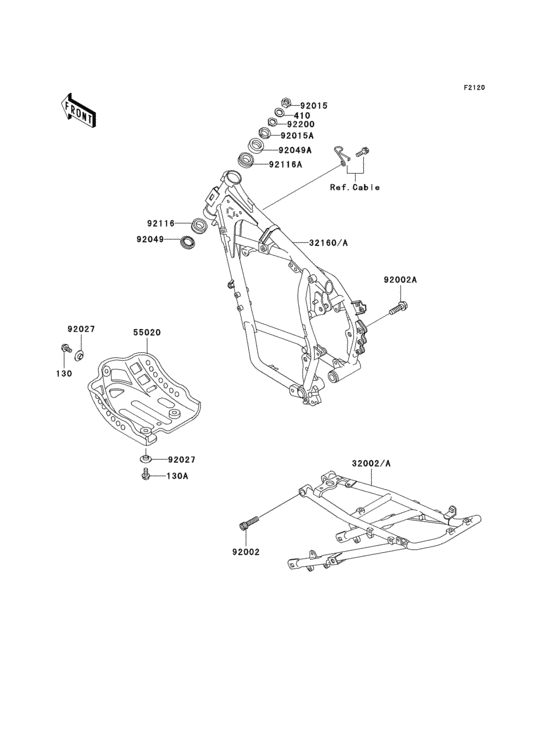

Frame Diagram Kawasaki KL650 KLR650
- Year
- 2003
- Colour
- Olive Green (HA)
- Model code
- KL650-A17
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- KLR650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0612
BOLT-FLANGED,6X12
|
130G0612 |
— | ||
| replacement | |||||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
130A
|
130A
130G0614 BOLT-FLANGED,6X14 |
130G0614 |
from US $1.11 |
||
| replacement | |||||
|
130A
|
130A
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
410
|
410
410F1800
W-PLAIN-S
|
410F1800 |
— | ||
| replacement | |||||
|
410
|
410
410AB1800 W-PLAIN-S |
410AB1800 |
from US $1.09 |
||
|
32002A
|
32002A
32002-1923-CE FRAME-COMP,RR,SILVER |
32002-1923-CE |
from US $1,004.66 |
||
|
32160A
|
32160A
32160-1759-CE FRAME-COMP,FR,SILVER |
32160-1759-CE |
from US $1,793.46 |
||
|
55020
|
55020
55020-1249-6Z GUARD,ENGINE,BLACK |
55020-1249-6Z |
from US $187.31 |
||
|
92002
|
92002
92002-1844 BOLT,SOCKET,8X30 |
92002-1844 |
from US $3.48 |
||
| replacement | |||||
|
92002
|
92002
92154-1866 BOLT,SOCKET,8X30 |
92154-1866 |
from US $3.17 |
||
|
92002A
|
92002A
92002-1971 BOLT,FLANGED,8X28 |
92002-1971 |
US $3.85 |
||
| replacement | |||||
|
92002A
|
92002A
92153-1101 BOLT,FLANGED,8X28 |
92153-1101 |
from US $2.69 |
||
|
92015
|
92015
92015-1404 NUT,18MM |
92015-1404 |
from US $15.52 |
||
|
92015A
|
92015A
92015-1546 NUT |
92015-1546 |
from US $12.99 |
||
|
92027
|
92027
92027-1794 COLLAR |
92027-1794 |
from US $2.85 |
||
|
92049
|
92049
92049-1162 SEAL-OIL,XMHE36X52X4J |
92049-1162 |
from US $7.13 |
||
|
92049A
|
92049A
92049-1214 SEAL-OIL,STEERING STE |
92049-1214 |
from US $12.74 |
||
|
92116
|
92116
92116-1009 BRG,ROLLER,HR320/28XJ |
92116-1009 |
from US $20.91 |
||
|
92116A
|
92116A
92116-1052 BEARING-ROLLER,25X47X |
92116-1052 |
from US $20.94 |
||
|
92200
|
92200
92200-1357 WASHER |
92200-1357 |
from US $3.96 |
||
