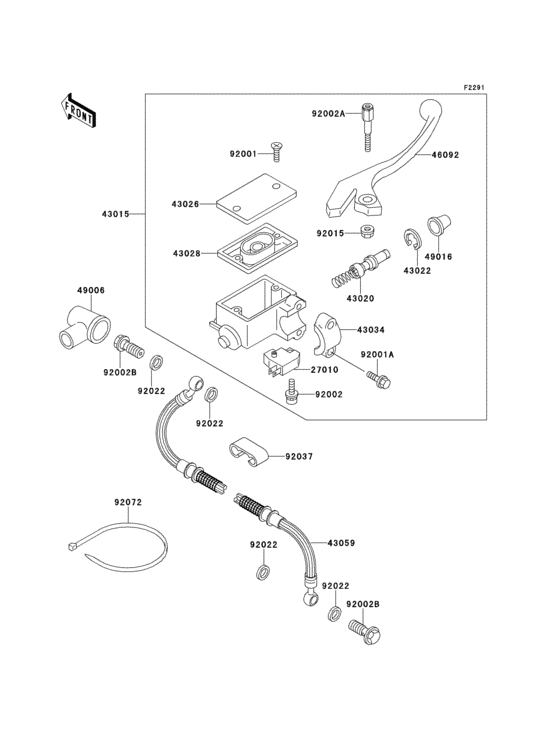

Front master cylinder Diagram Kawasaki KL650 KL650 Tengal
- Year
- 1990
- Colour
- Brilliant Blue/Pearl Alpine White (FY)
- Model code
- KL650-B2
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- KL650 Tengal
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27010
|
27010
27010-1170
SWITCH,BRAKE
|
27010-1170 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0025 SWITCH,BRAKE |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-1413 CYLINDER-ASSY-MASTER, |
43015-1413 |
US $275.51 |
||
|
43020
|
43020
43020-1056 PISTON-COMP-BRAKE,FR |
43020-1056 |
from US $45.15 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1022 CAP-BRAKE |
43026-1022 |
from US $31.26 |
||
|
43028
|
43028
43028-1061 DIAPHRAGM |
43028-1061 |
from US $11.72 |
||
|
43034
|
43034
43034-1016 HOLDER-BRAKE,MASTER C |
43034-1016 |
from US $14.10 |
||
|
43059
|
43059
43059-1477 HOSE-BRAKE,FR |
43059-1477 |
US $90.99 |
||
| replacement | |||||
|
43059
|
43059
43059-1628
No longer available
|
43059-1628 |
— | ||
|
46092
|
46092
46092-1135 LEVER-GRIP,FRONT BRAK |
46092-1135 |
from US $21.24 |
||
|
49006
|
49006
49006-1040 BOOT,DUST |
49006-1040 |
from US $7.29 |
||
| replacement | |||||
|
49006
|
49006
49006-1041 BOOT,DUST |
49006-1041 |
from US $9.35 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.61 |
||
|
92001
|
92001
92001-1727 BOLT,MASTER CYLINDER |
92001-1727 |
from US $2.85 |
||
|
92001A
|
92001A
92001-1729 Bolt |
92001-1729 |
from US $3.48 |
||
| replacement | |||||
|
92001A
|
92001A
92002-1894 Bolt |
92002-1894 |
from US $3.17 |
||
|
92002
|
92002
92002-1323 Bolt |
92002-1323 |
from US $2.53 |
||
|
92002A
|
92002A
92002-1879 BOLT,LEVER SET |
92002-1879 |
from US $13.31 |
||
|
92002B
|
92002B
92002-1888
BOLT,OIL,L=23
|
92002-1888 |
— | ||
| replacement | |||||
|
92002B
|
92002B
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92022
|
92022
43067-001
WASHER-SEAL,10.1X14.5
|
43067-001 |
— | ||
| replacement | |||||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
US $2.81 |
||
|
92037
|
92037
92037-1529 CLAMP,BRAKE HOSE |
92037-1529 |
from US $8.71 |
||
|
92072
|
92072
92072-1197 BAND |
92072-1197 |
from US $5.07 |
||
