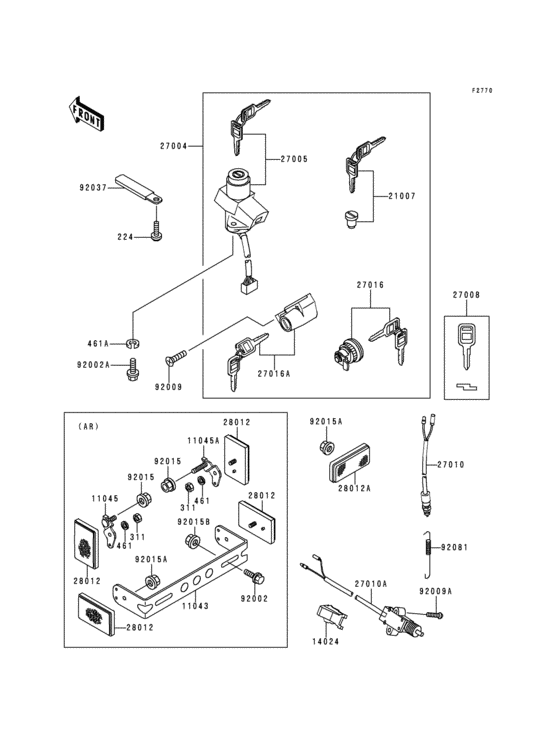

Ignition switch Diagram Kawasaki KLE500
- Year
- 1996
- Colour
- Candy Persimmon Red (A5)
- Model code
- KLE500-A6
- Sales region
- Austria
- Engine Capacity
- 500
- Model
- KLE500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
224
|
224
224B0508 SCREW-PAN-WP-CROS |
224B0508 |
from US $0.45 |
||
| replacement | |||||
|
224
|
224
224AA0508 SCREW-PAN-WP-CROS |
224AA0508 |
from US $0.94 |
||
|
311
|
311
311B0500
NUT-HEX,5MM
|
311B0500 |
— | ||
| replacement | |||||
|
311
|
311
311AA0500 NUT-HEX,5MM |
311AA0500 |
from US $0.78 |
||
|
461
|
461
461F0500
WASHER-SPRING
|
461F0500 |
— | ||
| replacement | |||||
|
461
|
461
461DA0500 WASHER-SPRING |
461DA0500 |
from US $0.48 |
||
|
461A
|
461A
461L0600 WASHER-SPRING,6MM |
461L0600 |
US $4.30 |
||
| replacement | |||||
|
461A
|
461A
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
11043
|
11043
11043-1619
Bracket,reflector,rr
|
11043-1619 |
— | ||
|
11045
|
11045
11045-1354 BRACKET,REFLECTOR,FR, |
11045-1354 |
from US $5.28 |
||
|
11045A
|
11045A
11045-1355 BRACKET,REFLECTOR,FR, |
11045-1355 |
from US $5.60 |
||
|
14024
|
14024
14024-1532 COVER,SIDE STAND SWITCH |
14024-1532 |
from US $6.02 |
||
|
21007
|
21007
21007-5037 ROTOR,LOCK,TANK CAP |
21007-5037 |
from US $67.17 |
||
|
27004
|
27004
27004-5481 Switch-assy |
27004-5481 |
US $373.16 |
||
|
27005
|
27005
27005-5102 SWITCH-ASSY-IGNITION |
27005-5102 |
US $203.28 |
||
|
27008
|
27008
27008-1173
KEY-LOCK,BLANK
|
27008-1173 |
— | ||
| replacement | |||||
|
27008
|
27008
27008-0621 KEY-LOCK,BLANK |
27008-0621 |
from US $20.78 |
||
|
27010
|
27010
27010-1093
Switch,brake lamp
|
27010-1093 |
— | ||
| replacements | |||||
|
27010
|
27010
27010-1452 SWITCH,BRAKE LAMP |
27010-1452 |
from US $19.64 |
||
|
27010
|
27010
27010-1479 SWITCH,REAR BRAKE |
27010-1479 |
from US $19.01 |
||
|
27010
|
27010
27010-1432 SWITCH,REAR BRAKE |
27010-1432 |
from US $20.94 |
||
|
27010A
|
27010A
27010-1223 SWITCH,SIDE STAND |
27010-1223 |
from US $50.27 |
||
|
27016
|
27016
27016-5210 LOCK-ASSY,TOOL BOX |
27016-5210 |
from US $56.25 |
||
|
27016A
|
27016A
27016-5211
LOCK-ASSY,HELMET
|
27016-5211 |
— | ||
|
28012
|
28012
28012-1003 REFLECTOR,REFLEX(FRON |
28012-1003 |
from US $15.68 |
||
|
28012A
|
28012A
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
92002
|
92002
92002-1132 BOLT-UPSET |
92002-1132 |
from US $0.95 |
||
| replacement | |||||
|
92002
|
92002
112BA0612 BOLT-UP SET |
112BA0612 |
from US $1.25 |
||
|
92002A
|
92002A
92002-1333
Bolt
|
92002-1333 |
— | ||
| replacements | |||||
|
92002A
|
92002A
92153-0967 BOLT,TORX,6X16 |
92153-0967 |
from US $1.11 |
||
|
92002A
|
92002A
92151-1911 BOLT,TORX,6X16 |
92151-1911 |
from US $1.11 |
||
|
92009
|
92009
92009-1401 SCREW |
92009-1401 |
from US $3.33 |
||
|
92009A
|
92009A
92009-1459 SCREW |
92009-1459 |
from US $3.90 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92015B
|
92015B
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92037
|
92037
92037-1069
CLAMP
|
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 Clamp |
92171-0652 |
from US $1.27 |
||
|
92081
|
92081
92081-1082 SPRING,BRAKE SWITCH |
92081-1082 |
from US $5.80 |
||
