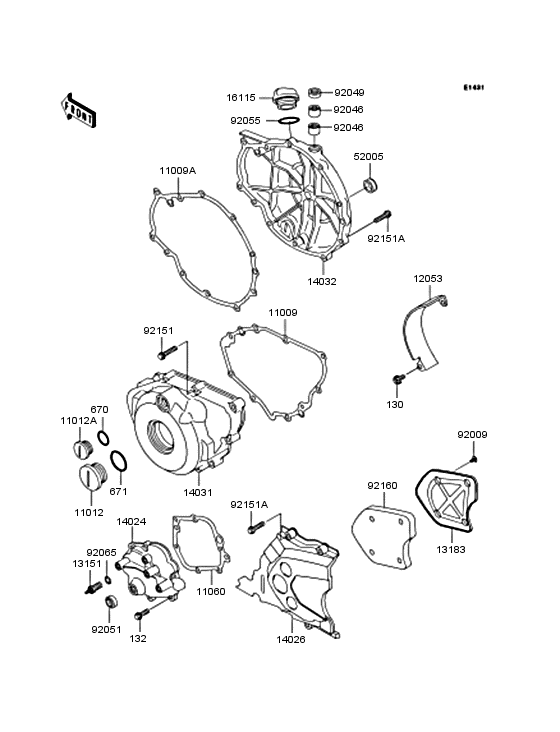

Engine cover (s) Diagram Kawasaki KLE500
- Year
- 2005
- Colour
- Metallic Flat Spark Black (739)
- Model code
- KLE500-B1P
- Sales region
- Europe (General)
- Engine Capacity
- 500
- Engine
- EX500AE 018001 -
- Model
- KLE500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0612
BOLT-FLANGED,6X12
BOLT-FLANGED，6X12 |
130G0612 |
— | ||
| replacement | |||||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12BOLT-FLANGED，6X12 |
130BA0612 |
from US $0.79 |
||
|
132
|
132
132J0620
BOLT,6X20
BOLT-FLANGED-SMALL，M6X20 |
132J0620 |
— | ||
| replacement | |||||
|
132
|
132
132BB0620 BOLT,6X20BOLT-FLANGED-SMALL，M6X20 |
132BB0620 |
from US $2.38 |
||
|
670
|
670
670B2018 0 RING,18MMO RING，18MM |
670B2018 |
from US $3.20 |
||
|
671
|
671
671B2540 0 RING,40MMO RING，40MM |
671B2540 |
from US $3.48 |
||
|
11009
|
11009
11009-1834 GASKET,GENERATOR COVEGASKET，GENERATOR COVER |
11009-1834 |
from US $16.79 |
||
| replacement | |||||
|
11009
|
11009
11061-0273 GASKET,GENERATOR COVEGASKET，GENERATOR COVER |
11061-0273 |
from US $13.38 |
||
|
11009A
|
11009A
11009-1836 GASKET,CLUTCH COVERGASKET，CLUTCH COVER |
11009-1836 |
from US $21.38 |
||
| replacement | |||||
|
11009A
|
11009A
11061-0274 GASKET,CLUTCH COVERGASKET，CLUTCH COVER |
11061-0274 |
from US $24.40 |
||
|
11012
|
11012
11012-1362 CAPCAP |
11012-1362 |
from US $6.34 |
||
|
11012A
|
11012A
11012-1363 CAP,TOP MARKCAP，TOP MARK |
11012-1363 |
from US $4.75 |
||
|
11060
|
11060
11060-1830 GASKETGASKET，CHANGE MECHANISM |
11060-1830 |
from US $6.97 |
||
|
12053
|
12053
12053-1215 GUIDE-CHAINGUIDE-CHAIN |
12053-1215 |
from US $12.04 |
||
|
13151
|
13151
13151-1080 Switch-Comp,NeutralSWITCH-COMP，NEUTRAL |
13151-1080 |
from US $10.68 |
||
|
13183
|
13183
13183-1680 Plate,sound arresterPLATE，SOUND ARRESTER |
13183-1680 |
US $12.51 |
||
|
14024
|
14024
14024-1387 COVER,CHANGE MECHANISCOVER，CHANGE MECHANISM |
14024-1387 |
from US $80.63 |
||
|
14026
|
14026
14026-0019 カバ-(チエ-ン)COVER-CHAIN |
14026-0019 |
US $80.55 |
||
|
14031
|
14031
14031-0034 Cover-generatorCOVER-GENERATOR |
14031-0034 |
US $211.09 |
||
|
14032
|
14032
14032-0044 カバ-(クラツチ)COVER-CLUTCH |
14032-0044 |
US $238.77 |
||
|
16115
|
16115
16115-1009 CAP-OIL FILLERCAP-OIL FILLER |
16115-1009 |
from US $10.14 |
||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVELGAUGE，OIL LEVEL |
52005-1009 |
from US $13.15 |
||
|
92009
|
92009
92009-1155 SCREW,TAPPING,4X8SCREW，TAPPING，4X8 |
92009-1155 |
from US $2.38 |
||
|
92046
|
92046
92046-1010
BEARING-NEEDLE,HK1210
BEARING-NEEDLE，HK1210 |
92046-1010 |
— | ||
| replacement | |||||
|
92046
|
92046
92046-0034 BEARING-NEEDLE,HK1210FMBEARING-NEEDLE，HK1210 |
92046-0034 |
from US $12.67 |
||
|
92049
|
92049
92049-1271 SEAL-OILSEAL-OIL，TB12205.5 |
92049-1271 |
from US $8.15 |
||
|
92051
|
92051
92051-005 OIL SEAL,TB13225.5SEAL-OIL，TB13225.5 |
92051-005 |
from US $6.57 |
||
|
92055
|
92055
92055-049 O-RING,31MMRING-O，31.7X2.4 |
92055-049 |
from US $3.37 |
||
|
92065
|
92065
92065-058 GASKETGASKET，10.5X16X1 |
92065-058 |
from US $3.37 |
||
|
92151
|
92151
92151-1134 BOLT-FLANGED-SMALL,6XBOLT，6X30 |
92151-1134 |
from US $2.48 |
||
| replacement | |||||
|
92151
|
92151
132BC0630 BOLT-FLANGED-SMALL,6XBOLT，6X30 |
132BC0630 |
from US $1.25 |
||
|
92151A
|
92151A
92151-1930 BOLT,6X25BOLT，FLANGED-SMALL，M6X25 |
92151-1930 |
from US $1.77 |
||
|
92160
|
92160
92160-1276 Damper,sound arresterDAMPER，SOUND ARRESTER |
92160-1276 |
US $21.38 |
||
