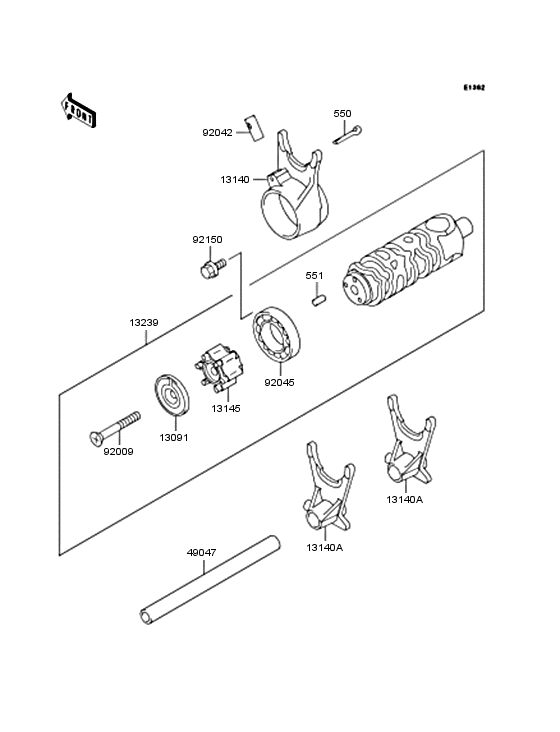

Gear change drum/shift fork (s) Diagram Kawasaki KLE500
- Year
- 2005
- Colour
- Metallic Flat Spark Black (739)
- Model code
- KLE500-B1P
- Sales region
- Europe (General)
- Engine Capacity
- 500
- Engine
- EX500AE 018001 -
- Model
- KLE500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D3020 PIN-COTTER,3.0X20PIN-COTTER，3.0X20 |
550D3020 |
US $1.11 |
||
| replacement | |||||
|
550
|
550
550AA3020 PIN-COTTER,3.0X20PIN-COTTER，3.0X20 |
550AA3020 |
from US $1.11 |
||
|
551
|
551
551A0408 PIN,DOWEL,4X8PIN-DOWEL，4X8 |
551A0408 |
from US $1.17 |
||
|
13091
|
13091
13091-1351 HOLDER,CHANGE DRUMHOLDER，CHANGE DRUM |
13091-1351 |
from US $20.64 |
||
|
13140
|
13140
13140-1016 SHIFT FORK,GEAR SHIFTFORK-SHIFT，DRIVE |
13140-1016 |
from US $79.89 |
||
|
13140A
|
13140A
13140-1062 FORK-SHIFT,OUTPUTFORK-SHIFT，OUTPUT |
13140-1062 |
US $79.89 |
||
|
13145
|
13145
13145-1056 CAM-CHANGE DRUMCAM-CHANGE DRUM |
13145-1056 |
from US $43.68 |
||
|
13239
|
13239
13239-1118 DRUM-ASSY-CHANGEDRUM-ASSY-CHANGE |
13239-1118 |
from US $171.34 |
||
|
49047
|
49047
49047-1061 ROD-SHIFTROD-SHIFT |
49047-1061 |
from US $19.32 |
||
|
92009
|
92009
92009-1599 SCREWSCREW，6X45 |
92009-1599 |
from US $2.53 |
||
|
92042
|
92042
92042-021 DOWEL PIN,8X18PIN，DOWEL，8X18 |
92042-021 |
from US $7.92 |
||
|
92045
|
92045
92045-036 BEARING,BALL,#6905BEARING-BALL，#6905 |
92045-036 |
from US $21.38 |
||
|
92150
|
92150
92150-1826 BOLT,6X12BOLT，FLANGED，M6X12 |
92150-1826 |
from US $2.53 |
||
