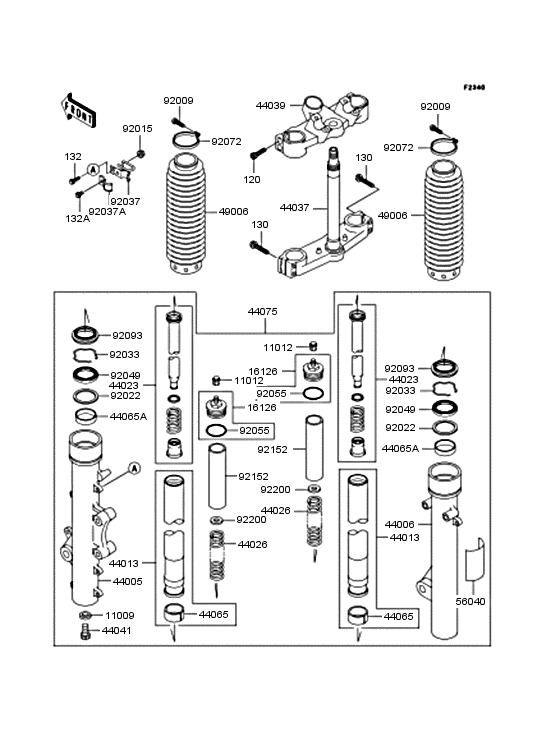

Front fork Diagram Kawasaki KLE500
- Year
- 2005
- Colour
- Metallic Titanium (740)
- Model code
- KLE500-B1P
- Sales region
- Europe (General)
- Engine Capacity
- 500
- Engine
- EX500AE 018001 -
- Model
- KLE500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0830
BOLT-SOCKET,8X30,BLAC
BOLT-SOCKET，8X30，BLACK |
120S0830 |
— | ||
| replacement | |||||
|
120
|
120
120CB0830 BOLT-SOCKET,8X30,BLACBOLT-SOCKET，8X30，BLACK |
120CB0830 |
from US $1.27 |
||
|
130
|
130
130J0840 BOLT-FLANGED,8X40BOLT-FLANGED，8X40 |
130J0840 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BB0840 BOLT-FLANGED,8X40BOLT-FLANGED，8X40 |
130BB0840 |
from US $1.27 |
||
|
132
|
132
132E0620
Bolt
BOLT-FLANGED-SMALL，M6X20 |
132E0620 |
— | ||
| replacement | |||||
|
132
|
132
92002-1607 BoltBOLT-FLANGED-SMALL，M6X20 |
92002-1607 |
from US $2.85 |
||
|
132A
|
132A
132J0612
BOLT-FLANGED-SMALL,6X
BOLT-FLANGED-SMALL，M6X12 |
132J0612 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0612 BOLT-FLANGED-SMALL,6XBOLT-FLANGED-SMALL，M6X12 |
132BB0612 |
from US $0.95 |
||
|
11009
|
11009
11009-1325 GASKET,FORK CYLINDERGASKET，PIPE-COMP-SUSP |
11009-1325 |
from US $3.97 |
||
| replacement | |||||
|
11009
|
11009
44045057 GASKET,FORK CYLINDERGASKET，PIPE-COMP-SUSP |
44045057 |
from US $3.33 |
||
|
11012
|
11012
11012-1391 CAP,VALVE AIRCAP，VALVE AIR |
11012-1391 |
from US $4.12 |
||
|
16126
|
16126
16126-1147 VALVEVALVE |
16126-1147 |
from US $53.86 |
||
|
44005
|
44005
44005-0030 チユ-ブ(レフトフオ-クアウタ)PIPE-LEFT FORK OUTER |
44005-0030 |
US $431.06 |
||
|
44006
|
44006
44006-0029 チユ-ブ(ライトフオ-クアウタ)PIPE-RIGHT FORK OUTER |
44006-0029 |
US $431.06 |
||
|
44013
|
44013
44013-0035 パイプ(フオ-クインナ)PIPE-FORK INNER |
44013-0035 |
US $399.38 |
||
|
44023
|
44023
44023-0028 シリンダセツト(フオ-ク)CYLINDER-SET-FORK |
44023-0028 |
US $183.19 |
||
|
44026
|
44026
44026-0061 スプリング(フロントフオ-ク)SPRING-FRONT FORK |
44026-0061 |
US $88.37 |
||
|
44037
|
44037
44037-0024 ホルダ(フオ-クアンダ)HOLDER-FORK UNDER |
44037-0024 |
US $578.98 |
||
|
44039
|
44039
44039-1215 Holder-fork upperHOLDER-FORK UPPER |
44039-1215 |
US $227.96 |
||
|
44041
|
44041
44041040 BOLT-FORK CYLINDERBOLT，SOCKET，FORK CYLINDER |
44041040 |
from US $4.44 |
||
|
44065
|
44065
44065-0014 BUSHING-FRONT FORK,INBUSHING-FRONT FORK，INNER TUBE |
44065-0014 |
from US $19.48 |
||
|
44065A
|
44065A
44065-1115 BUSHING-FRONT FORKBUSHING-FRONT FORK，OUTER TUBE |
44065-1115 |
from US $19.48 |
||
|
44075
|
44075
44075-0061 Damper-set-forkDAMPER-SET-FORK |
44075-0061 |
US $1,471.97 |
||
| replacements | |||||
|
44075
|
44075
44071-0169 ダンパアツシ，フオーク，lhDAMPER-SET-FORK |
44071-0169 |
US $791.28 |
||
|
44075
|
44075
44071-0170 ダンパアツシ，フオーク，rhDAMPER-SET-FORK |
44071-0170 |
US $791.28 |
||
|
49006
|
49006
49006-1266-BD BOOT,FORK,BLACKBOOT，FORK，BLACK |
49006-1266-BD |
from US $61.59 |
||
|
56040
|
56040
56040-1120
LABEL,FRONT FORK
LABEL-WARNING，FRONT FORK |
56040-1120 |
— | ||
|
92009
|
92009
92009-1348 SCREWSCREW，4X16 |
92009-1348 |
from US $3.48 |
||
|
92015
|
92015
92015-1603 NUTNUT，LOCK，FLANGED，6MM |
92015-1603 |
from US $2.85 |
||
|
92022
|
92022
92022-1298 WASHER,FORK OUTER TUBWASHER，FORK OUTER TUBE |
92022-1298 |
from US $6.57 |
||
|
92033
|
92033
92033-1036 CIRCLIPRING-SNAP |
92033-1036 |
from US $3.80 |
||
|
92037
|
92037
92037-1897 Clamp,HoseCLAMP，HOSE |
92037-1897 |
from US $10.77 |
||
|
92037A
|
92037A
92037-1898 Clamp,HoseCLAMP，HOSE |
92037-1898 |
from US $5.54 |
||
|
92049
|
92049
92049-1356 SEAL-OILSEAL-OIL，FORK OUTER TUBE |
92049-1356 |
from US $15.05 |
||
|
92055
|
92055
92055-1321 0 RING,32MMRING-O |
92055-1321 |
from US $1.76 |
||
| replacement | |||||
|
92055
|
92055
670B3032 0 RING,32MMRING-O |
670B3032 |
from US $1.84 |
||
|
92072
|
92072
92072-1077 BAND,BOOTBAND，BOOT |
92072-1077 |
from US $6.49 |
||
|
92093
|
92093
92093-0036 SEAL,DUSTSEAL，DUST |
92093-0036 |
from US $11.56 |
||
|
92152
|
92152
92152-1085 Collar,fork,l=150COLLAR，FORK，L=150 |
92152-1085 |
US $13.15 |
||
|
92200
|
92200
92200-1467 WASHERWASHER |
92200-1467 |
from US $6.02 |
||
