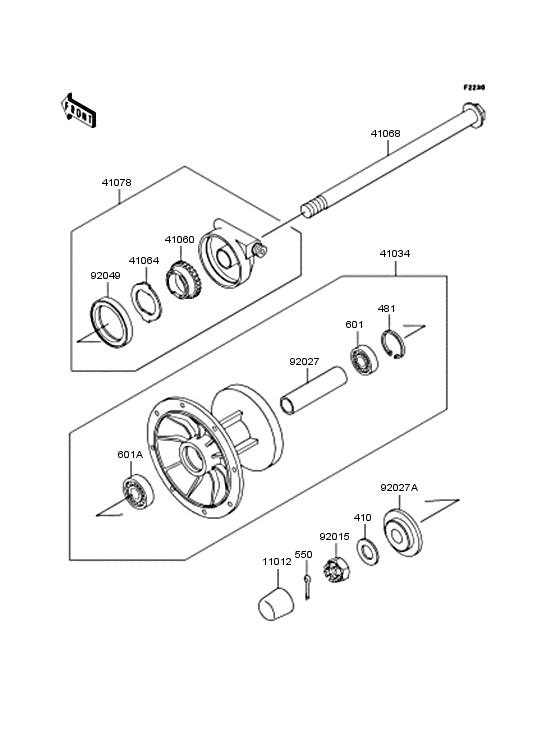

Front wheel Diagram Kawasaki KLE500
- Year
- 2005
- Colour
- Metallic Titanium (740)
- Model code
- KLE500-B1P
- Sales region
- United Kingdom
- Engine Capacity
- 500
- Engine
- EX500AE 018001 -
- Model
- KLE500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
410
|
410
410B1400 WASHER PLAIN 14MMWASHER-PLAIN-SMALL，14MM |
410B1400 |
from US $1.27 |
||
| replacement | |||||
|
410
|
410
410AA1400 WASHER-PLAIN-SMALL,14WASHER-PLAIN-SMALL，14MM |
410AA1400 |
from US $0.95 |
||
|
481
|
481
481J3500 CIRCLIP,35MMCIRCLIP-TYPE-C，35MM |
481J3500 |
from US $1.43 |
||
|
550
|
550
550D3025
PIN-COTTER,3.0X25
PIN-COTTER，3.0X25 |
550D3025 |
— | ||
| replacement | |||||
|
550
|
550
550AA3025 PIN-COTTER,3.0X25PIN-COTTER，3.0X25 |
550AA3025 |
from US $0.82 |
||
|
601
|
601
601B6202UG
BEARING,BALL,#6202UC3
BEARING-BALL，#6202UG |
601B6202UG |
— | ||
| replacement | |||||
|
601
|
601
601B6202U BEARING,BALL,#6202UC3BEARING-BALL，#6202UG |
601B6202U |
from US $14.57 |
||
|
601A
|
601A
601B6203UG BEARING 6203UGBEARING-BALL，#6203UG |
601B6203UG |
from US $16.79 |
||
|
11012
|
11012
11012-1594 CapCAP，AXLE NUT |
11012-1594 |
US $5.54 |
||
|
41034
|
41034
41034-1153 DRUM-ASSY,FRONT BRAKEDRUM-ASSY，FRONT BRAKE |
41034-1153 |
from US $509.65 |
||
|
41060
|
41060
41060-1101 GEAR-METER SCREW,24TGEAR-METER SCREW，24T |
41060-1101 |
from US $25.28 |
||
|
41064
|
41064
41064-1051 RECEIVER-SPEEDOMETERRECEIVER-SPEEDOMETER |
41064-1051 |
from US $8.55 |
||
|
41068
|
41068
41068-1236 AXLE,FRAXLE，FR |
41068-1236 |
US $53.86 |
||
|
41078
|
41078
41078-1051 CASE-ASSY-METER GEARCASE-ASSY-METER GEAR |
41078-1051 |
from US $91.56 |
||
|
92015
|
92015
92015-1765 NUT,CASTLE,14MMNUT，CASTLE，14MM |
92015-1765 |
from US $6.34 |
||
|
92027
|
92027
92027-1683 COLLAR,FRONT BRAKE DRCOLLAR，FRONT BRAKE DRUM，L=79 |
92027-1683 |
from US $23.94 |
||
|
92027A
|
92027A
92027-1864 COLLAR,FRONT AXLECOLLAR |
92027-1864 |
from US $20.43 |
||
|
92049
|
92049
92049-1172 SEAL-OIL,METER GEAR CSEAL-OIL，METER GEAR CASE |
92049-1172 |
from US $11.56 |
||
