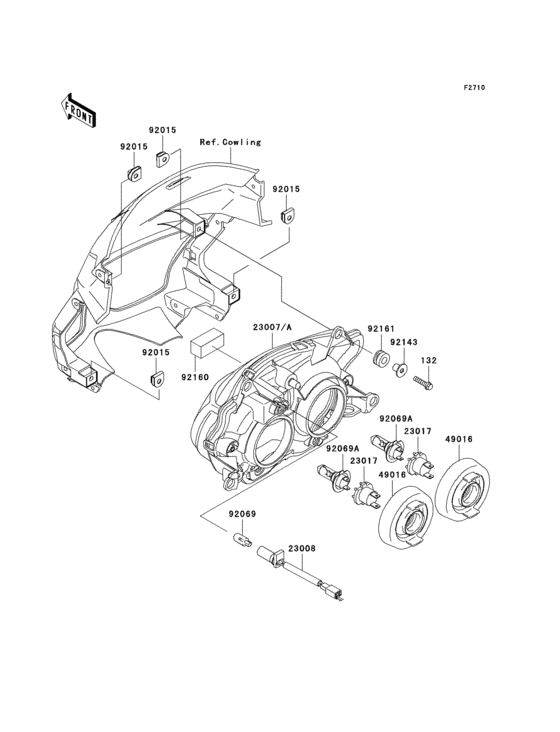

Headlight(s) Diagram Kawasaki KLE500
- Year
- 2007
- Model code
- KLE500B7F
- Sales region
- Europe (General)
- Engine Capacity
- 500
- Model
- KLE500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
92150-1779 BOLT-FLANGED-SMALL,6X |
92150-1779 |
from US $2.69 |
||
| replacement | |||||
|
132
|
132
132BB0625 BOLT-FLANGED-SMALL,6X |
132BB0625 |
from US $1.27 |
||
|
23007A
|
23007A
23007-0043 Lens-comp,head lamp |
23007-0043 |
US $559.97 |
||
|
23008
|
23008
23008-1686 SOCKET-ASSY,HEAD LAMP |
23008-1686 |
from US $19.21 |
||
|
23017
|
23017
23017-1067 SOCKET,HEAD LAMP |
23017-1067 |
from US $15.05 |
||
|
49016
|
49016
49016-1209 COVER-SEAL,HEAD LAMP |
49016-1209 |
from US $16.54 |
||
|
92015
|
92015
92015-1904 NUT,CLIP,6MM |
92015-1904 |
from US $3.80 |
||
|
92069
|
92069
92069-1016 BULB,12V 5W |
92069-1016 |
from US $3.96 |
||
|
92069A
|
92069A
92069-0053 BULB,12V 55W,H7 |
92069-0053 |
from US $34.11 |
||
|
92143
|
92143
92143-1353 COLLAR |
92143-1353 |
from US $5.54 |
||
|
92160
|
92160
92160-1272 DAMPER |
92160-1272 |
from US $3.33 |
||
|
92161
|
92161
92161-0036 DAMPER |
92161-0036 |
from US $1.43 |
||
