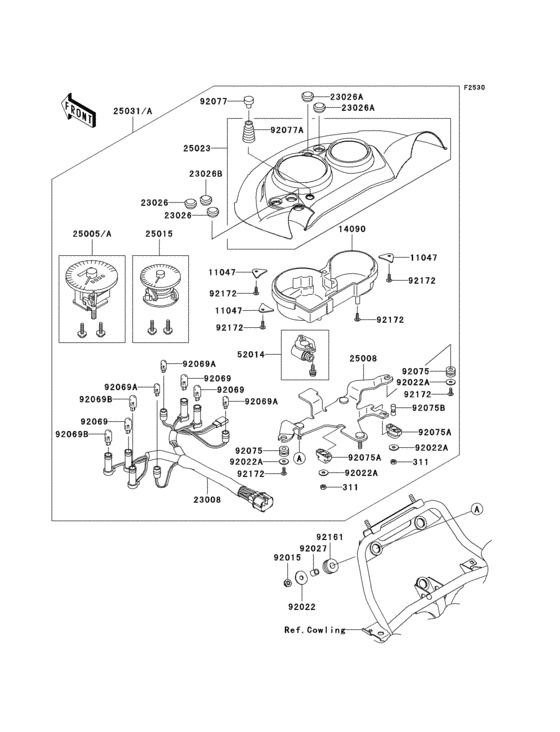

Meter(s) Diagram Kawasaki KLE500
- Year
- 2007
- Model code
- KLE500B7F
- Sales region
- Europe (General)
- Engine Capacity
- 500
- Model
- KLE500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311AA0500 NUT-HEX,5MM |
311AA0500 |
from US $0.78 |
||
|
11047
|
11047
11047-1373 Bracket,meter |
11047-1373 |
US $6.81 |
||
|
14090
|
14090
14090-1102 Cover,meter housing |
14090-1102 |
US $58.04 |
||
|
23008
|
23008
23008-0037 ソケツトアツシ，メータ |
23008-0037 |
US $115.16 |
||
|
23026
|
23026
23026-1105 LENS,OIL |
23026-1105 |
from US $7.92 |
||
|
23026A
|
23026A
23026-1107 LENS,NEUTRAL |
23026-1107 |
from US $7.92 |
||
|
23026B
|
23026B
23026-1108 LENS,HIGH BEAM |
23026-1108 |
from US $6.84 |
||
|
25005
|
25005
25005-0012 スピ-ドメ-タ，kph |
25005-0012 |
US $348.66 |
||
|
25008
|
25008
25008-0004 ブラケツト(メ-タ) |
25008-0004 |
US $55.08 |
||
|
25015
|
25015
25015-0007 タコメ-タ，x1000r/min |
25015-0007 |
US $369.78 |
||
|
25023
|
25023
25023-0010
カバ-(メ-タケ-ス)，upp
|
25023-0010 |
— | ||
|
25031
|
25031
25031-0066 メ-タアツシ，kph |
25031-0066 |
US $1,286.87 |
||
|
52014
|
52014
52014-0002 ELBOW |
52014-0002 |
from US $53.71 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-228 WASHER,PLAIN,7MM |
92022-228 |
from US $2.53 |
||
|
92022A
|
92022A
92022-263 WASHER,PLAIN,6MM |
92022-263 |
from US $2.19 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDER |
92027-162 |
from US $4.80 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4W |
92069-1007 |
from US $3.33 |
||
|
92069A
|
92069A
92069-1020 BULB,12V3W T-7 |
92069-1020 |
from US $4.44 |
||
|
92069B
|
92069B
92069-1059 BULB,12V 1.7W |
92069-1059 |
from US $3.33 |
||
|
92075
|
92075
92075-1435 DAMPER,METER BRACKET |
92075-1435 |
from US $3.96 |
||
|
92075A
|
92075A
92075-1495 DAMPER,METER BRACKET |
92075-1495 |
from US $8.87 |
||
|
92075B
|
92075B
92075-1627 DAMPER,METER BRACKET |
92075-1627 |
from US $3.24 |
||
|
92077
|
92077
92077-1083 KNOB,TRIP RESET |
92077-1083 |
US $6.49 |
||
|
92077A
|
92077A
92077-1087 KNOB,TRIP RESET |
92077-1087 |
from US $6.65 |
||
|
92161
|
92161
92161-0163 DAMPER,SIGNAL LAMP,FR |
92161-0163 |
from US $3.17 |
||
|
92172
|
92172
92172-0193 スクリユ-，タツピング，4x12 |
92172-0193 |
US $1.43 |
