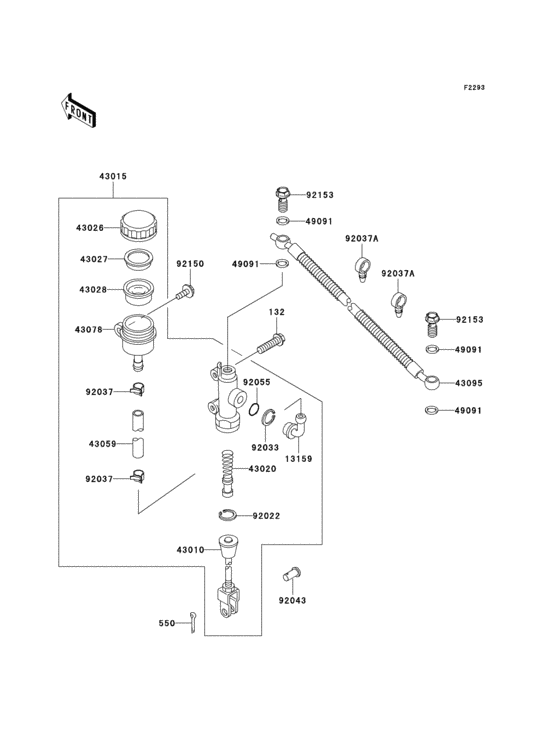

Rear master cylinder Diagram Kawasaki KLE500
- Year
- 2007
- Model code
- KLE500B7F
- Sales region
- Europe (General)
- Engine Capacity
- 500
- Model
- KLE500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132E0830 BOLT-FLANGED-SMALL,8X |
132E0830 |
from US $1.43 |
||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
13159
|
13159
13159-1056 CONNECTOR |
13159-1056 |
from US $9.98 |
||
|
43010
|
43010
43010-1070 ROD-ASSY-BRAKE |
43010-1070 |
from US $39.06 |
||
|
43015
|
43015
43015-1513 Cylinder-assy-master, |
43015-1513 |
US $326.70 |
||
|
43020
|
43020
43020-1094 PISTON-COMP-BRAKE |
43020-1094 |
from US $42.04 |
||
|
43026
|
43026
43026-1077 CAP-BRAKE |
43026-1077 |
from US $25.13 |
||
|
43027
|
43027
43027-1053 PLATE-DIAPHRAGM |
43027-1053 |
from US $4.59 |
||
|
43028
|
43028
43028-1065 DIAPHRAGM |
43028-1065 |
from US $13.94 |
||
|
43059
|
43059
43059-1702 Hose-brake,rr master |
43059-1702 |
US $18.53 |
||
|
43078
|
43078
43078-1080 RESERVOIR |
43078-1080 |
from US $19.01 |
||
|
43095
|
43095
43095-1424 Hose-brake,rr |
43095-1424 |
US $66.57 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
US $2.81 |
||
|
92022
|
92022
92033-0079 RING-SNAP,20.9X24.6X1 |
92033-0079 |
from US $3.80 |
||
|
92033
|
92033
92033-1186 RING-SNAP,20.5MM |
92033-1186 |
from US $3.01 |
||
|
92037
|
92037
92037-1710 Clamp |
92037-1710 |
from US $6.65 |
||
|
92037A
|
92037A
92037-1827 Clamp,Hose |
92037-1827 |
from US $6.21 |
||
|
92043
|
92043
92043-0104 PIN,8X14.5 |
92043-0104 |
from US $1.90 |
||
|
92055
|
92055
92055-0741 RING-O,14.8X2.4 |
92055-0741 |
from US $1.90 |
||
|
92150
|
92150
92150-1198 Bolt |
92150-1198 |
from US $2.53 |
||
|
92153
|
92153
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
