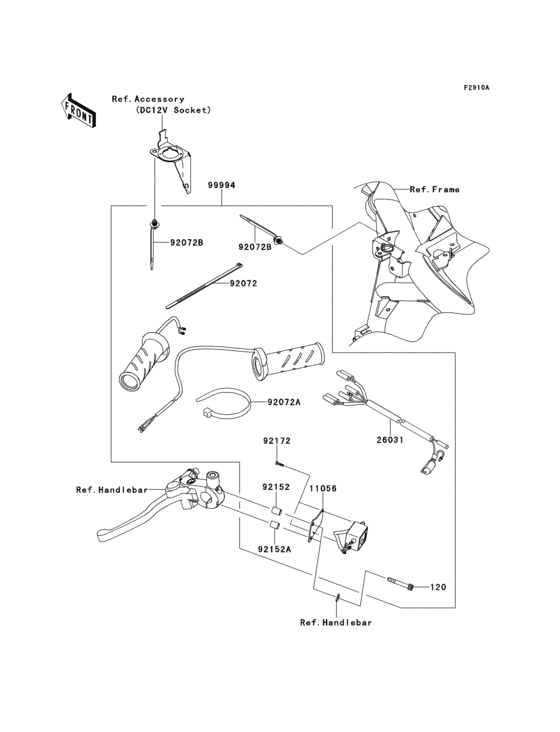

Accessory(grip heater) Diagram Kawasaki KLE650 Versys 650 ABS
- Year
- 2011
- Model code
- KLE650DBF
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Versys 650 ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0640 BOLT-SOCKET |
120CB0640 |
from US $1.27 |
||
|
11056
|
11056
11056-0307 BRACKET |
11056-0307 |
from US $13.80 |
||
|
26031
|
26031
26031-0971 HARNESS,GRIP HEATER |
26031-0971 |
from US $32.19 |
||
|
92072
|
92072
92072-1195 BAND,L=185 |
92072-1195 |
from US $2.07 |
||
|
92072A
|
92072A
92072-1197 BAND |
92072-1197 |
from US $5.07 |
||
|
92072B
|
92072B
92072-1414 BAND |
92072-1414 |
from US $1.74 |
||
|
92152
|
92152
92152-0901 COLLAR,6.5X10.5X14 |
92152-0901 |
from US $5.70 |
||
|
92152A
|
92152A
92152-0902 COLLAR,6.5X10.5X13 |
92152-0902 |
from US $5.70 |
||
|
92172
|
92172
92172-0489 SCREW,TAPPING,3X122 |
92172-0489 |
from US $1.27 |
||
|
99994
|
99994
99994-0193 GRIP HEATER |
99994-0193 |
from US $335.41 |
