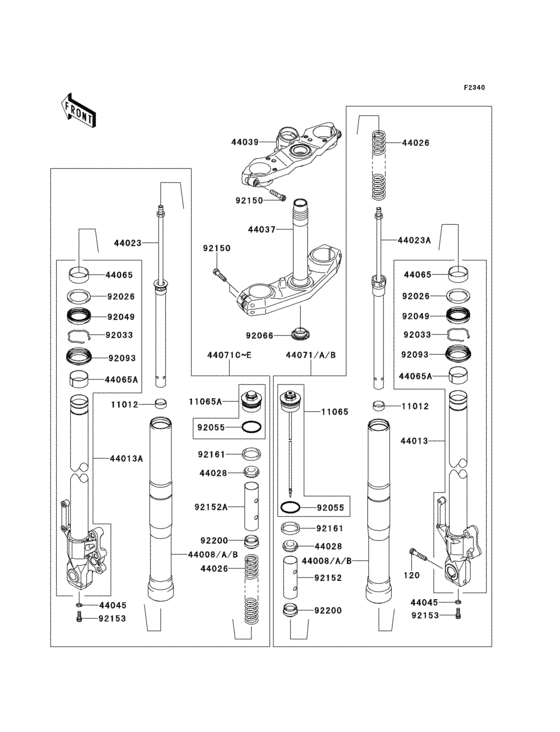

Front fork Diagram Kawasaki KLE650 Versys 650 ABS
- Year
- 2011
- Model code
- KLE650DBF
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Versys 650 ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0840 BOLT-SOCKET,8X40,BLAC |
120CB0840 |
from US $1.27 |
||
|
11012
|
11012
11012-1761 CAP |
11012-1761 |
from US $24.09 |
||
|
11065
|
11065
11065-0196 CAP,FORK BOLT COMP,RH |
11065-0196 |
from US $49.56 |
||
|
11065A
|
11065A
11065-0197 CAP,FORK BOLT COMP,LH |
11065-0197 |
from US $49.56 |
||
|
44008A
|
44008A
44008-0037-11G PIPE-FORK OUTER,GRAY |
44008-0037-11G |
from US $255.58 |
||
|
44013
|
44013
44013-0157-18R PIPE-FORK INNER,RH,F. |
44013-0157-18R |
from US $345.77 |
||
| replacement | |||||
|
44013
|
44013
44013-0230-18R PIPE-FORK INNER,RH,F. |
44013-0230-18R |
from US $377.21 |
||
|
44013A
|
44013A
44013-0159-18R PIPE-FORK INNER,LH,F. |
44013-0159-18R |
US $346.34 |
||
| replacement | |||||
|
44013A
|
44013A
44013-0231-18R PIPE-FORK INNER,LH,F. |
44013-0231-18R |
from US $352.71 |
||
|
44023
|
44023
44023-0048 CYLINDER-SET-FORK,LH |
44023-0048 |
from US $148.10 |
||
|
44023A
|
44023A
44023-0049 CYLINDER-SET-FORK,RH |
44023-0049 |
from US $148.10 |
||
|
44026
|
44026
44026-0097 SPRING-FRONT FORK |
44026-0097 |
from US $49.56 |
||
|
44028
|
44028
44028-1083 GUIDE-FORK SPRING |
44028-1083 |
from US $7.92 |
||
|
44037
|
44037
44037-0053 Holder-fork under |
44037-0053 |
from US $385.24 |
||
|
44039
|
44039
44039-0127-458 HOLDER-FORK UPPER,P.S |
44039-0127-458 |
from US $186.62 |
||
|
44045
|
44045
44045051 GASKET,FORK CYL BOLT |
44045051 |
from US $4.59 |
||
|
44065
|
44065
44065-0001 BUSHING-FRONT FORK,GU |
44065-0001 |
from US $16.32 |
||
|
44065A
|
44065A
44065-0002 BUSHING-FRONT FORK,SL |
44065-0002 |
from US $16.32 |
||
|
44071B
|
44071B
44071-0675-30V DAMPER-ASSY,FORK,RH,G |
44071-0675-30V |
from US $760.72 |
||
| replacement | |||||
|
44071B
|
44071B
44071-0974-30V DAMPER-ASSY,FORK,RH,G |
44071-0974-30V |
from US $739.04 |
||
|
44071E
|
44071E
44071-0676-30V Damper-assy,fork,lh,gray+ |
44071-0676-30V |
US $739.04 |
||
|
92026
|
92026
92026-1276 SPACER,FORK OUTER |
92026-1276 |
from US $6.34 |
||
|
92033
|
92033
92033-1222 RING-SNAP,FORK OUTER |
92033-1222 |
from US $4.61 |
||
|
92049
|
92049
92049-0058 SEAL-OIL |
92049-0058 |
from US $15.05 |
||
|
92055
|
92055
92055-0131 O-RING |
92055-0131 |
from US $2.69 |
||
|
92066
|
92066
92066-0032 PLUG |
92066-0032 |
from US $7.13 |
||
|
92093
|
92093
92093-0035 SEAL,DUST |
92093-0035 |
from US $14.26 |
||
|
92150
|
92150
120CA0835 BOLT-SOCKET,8X35 |
120CA0835 |
from US $1.27 |
||
|
92152
|
92152
92152-0497 COLLAR,FORK,L=100 |
92152-0497 |
from US $11.09 |
||
|
92152A
|
92152A
92152-0498 COLLAR,FORK,L=117.5 |
92152-0498 |
from US $11.09 |
||
|
92153
|
92153
92153-0028 BOLT |
92153-0028 |
from US $4.75 |
||
|
92161
|
92161
92161-0468 DAMPER |
92161-0468 |
from US $10.14 |
||
|
92200
|
92200
92200-1464 WASHER |
92200-1464 |
from US $5.23 |
||
