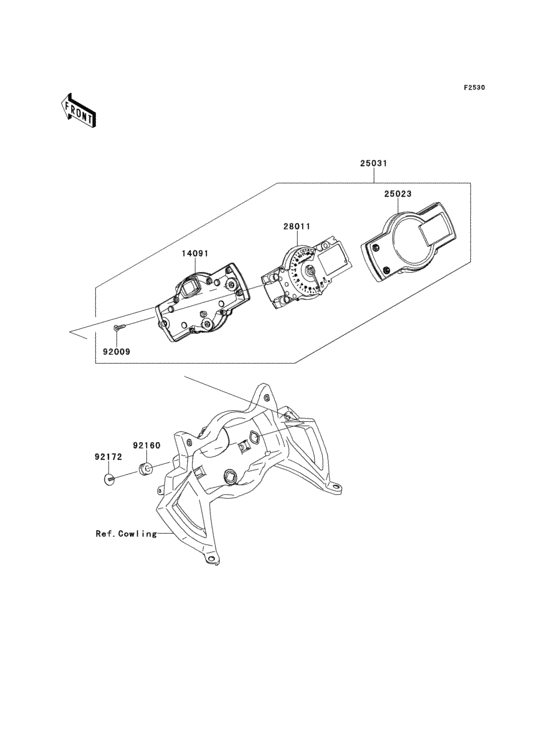

Meter(s) Diagram Kawasaki KLE650 Versys 650 ABS
- Year
- 2011
- Model code
- KLE650DBF
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Versys 650 ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14091
|
14091
14091-0864 COVER,METER,LWR |
14091-0864 |
from US $77.21 |
||
|
25023
|
25023
25023-0023 Cover-meter case,upp |
25023-0023 |
from US $118.48 |
||
|
25031
|
25031
25031-0348 METER-ASSY,TACHO&LCD |
25031-0348 |
from US $867.80 |
||
|
28011
|
28011
28011-0176 METER,TACHO&LCD |
28011-0176 |
from US $740.89 |
||
|
92009
|
92009
92009-1164 SCREW,TAPPING,3X16 |
92009-1164 |
from US $2.53 |
||
|
92160
|
92160
92160-1167 DAMPER |
92160-1167 |
from US $3.01 |
||
|
92172
|
92172
92172-0441 SCREW,TAPPING,WP,5X14 |
92172-0441 |
from US $1.11 |
